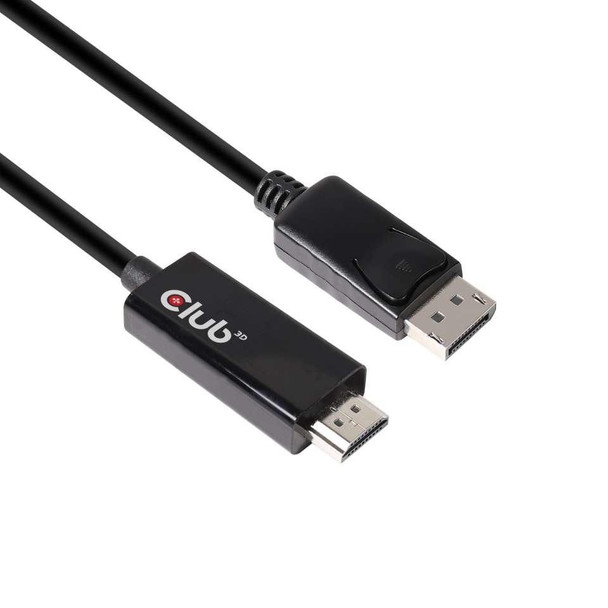

Club3D CAC-1082 Displayport 1.4 To Hdmi 2.0B CAC-1082

The Club3D CAC-1082 is a DisplayPort� 1.4 to HDMI� 2.0b signal converter. It features support for HDR Video quality for deep color media content playback. The DisplayPort� receiver supports up to 5,4 Gbps per lane over 4 lanes. The HDMI� output is fully compliant to HDMI� specification version 2.0b.

Supports up to 4K UHD Resolutions
The CAC-1082 supports UHD resolutions up to 4096 x 2160p at 60Hz.

Color Formats
It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the DisplayPort� and HDMI� link bandwidth. The CAC-1082 also supports pixel encoding conversion from RGB or YCbCr 4:4:4 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:4:4 over DP link to YCbCr 4:2:0 on the HDMI� output with a horizontal expansion to CEA timings.
Note: For HDR to function, the source system needs to support DisplayPort� 1.4 and the screen needs to have support for HDR and / or HDMI� 2.0 a or b.

Features



Cable length



2 m


Certification



ROHS, FCC, and CE EMI


Connector 1



DisplayPort 1.4


Connector 1 gender



Male


Connector 2



HDMI 2.0


Connector 2 gender



Male


Connector contacts plating



Nickel


DisplayPort version



1.4


Maximum resolution



4096 x 2160 Pixels


Product colour



Black


Logistics data



Harmonized System (HS) code



84733080


Products per master (outer) case



10 pc(s)


Other features



Height



1.2 cm


Width



2 cm


Package dimensions



Depth (package,cm)



14.5 cm


Gross Weight (Package, kg)



0.39 kg


Height (package,cm)



4.5 cm


Width (package,cm)



14.5 cm


Packaging data



Weight



85 g


Product dimensions



Net Weight (Product, kg)



0.3 kg


Product Height



1.2 cm


Product Width



2 cm


Sustainability



Sustainability certificates



RoHS


Vendor information



Brand Name


Club3D


Warranty



1 Year(s)
