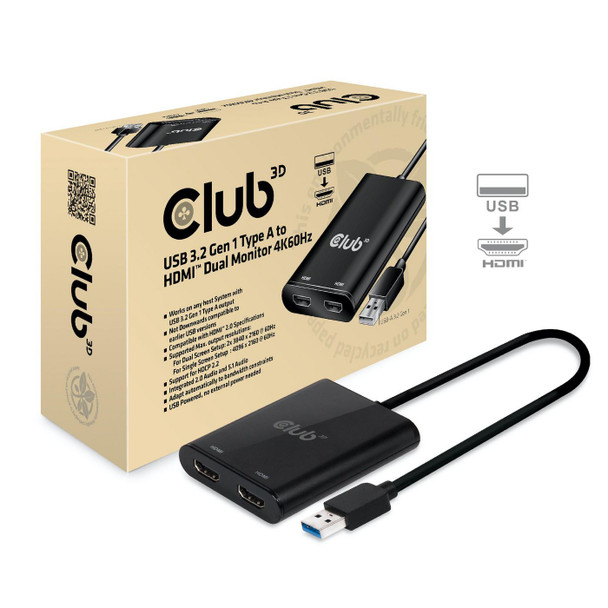

Club3D CSV-1474 adaptor USB 3.1 Typ A > 2x CSV-1474

SenseVision USB A to HDMI� 2.0 Dual Monitor 4K 60Hz. This unique product allows you to connect 2 Screens at 4K 60Hz to any host system with a free USB-A 3.1 Gen 1 port. Featuring the next generation Displaylink DL6950 SOC, your existing Notebook/PC- System/Tablet, is ready for the future.
HDMI� 2.0
The Bandwidth for HDMI� 2.0 was increased to 6 Gbps. per lane bringing the total bandwidth of the 3 integrated lanes 18 Gbps. HDMI� 2.0 is also referred to as "HDMI UHD", meaning it supports Ultra High Resolutions of up to 4096x2160p at 60Hz. HDMI� 2.0 is downwards compatible to earlier versions however that will influence the max supported resolutions.

Features



3D



Yes


Cable length



0.27 m


Certification



RoHS, CE, WEEE


Easy to install



Yes


Full HD



Yes


HDCP



Yes


HD-Ready



Yes


Maximum refresh rate



60 Hz


Maximum resolution



3840 x 2160 Pixels


Product colour



Black


Windows operating systems supported



Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64


Logistics data



Harmonized System (HS) code



85176990


Products per master (outer) case



1 pc(s)


Package dimensions



Gross Weight (Package, kg)



0.15 kg


Height (package,cm)



3.5 cm


Width (package,cm)



8 cm


Packaging content



User guide



Yes


Packaging data



Package length



28 cm


Ports & interfaces



HDMI version



2.0


Video port type



HDMI


Video ports quantity



2


Power



USB powered



Yes


Product dimensions



Net Weight (Product, kg)



0.13 kg


Technical details



Audio output



yes


Vendor information



Brand Name


Club3D


Warranty



1 Year(s)


Weight & dimensions



Dimensions (WxDxH)



96 x 56 x 16 mm
