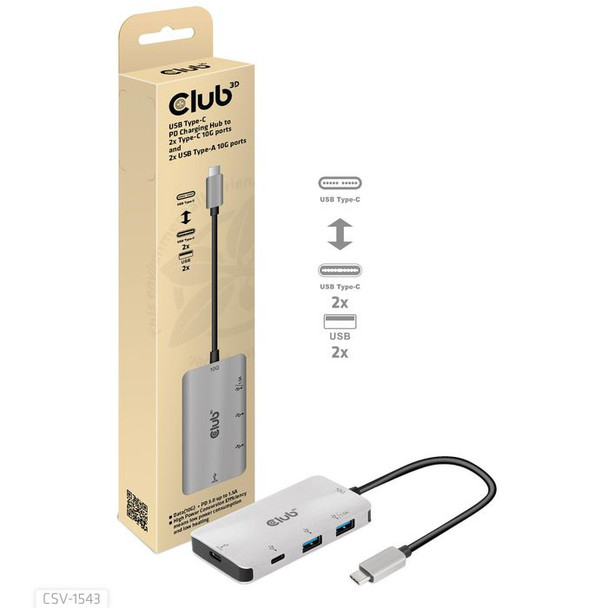

Club3D CSV-1543 Usb Gen2 Type-C Pd Charging CSV-1543

The Club 3D CSV-1543 is an USB Gen2 Type-C PD Charging Hub to 2x Type-C 10G ports and 2x USB Type-A 10G ports. The two USB Type-A ports are designed for transmitting data and one of the two USB Type-A ports can provide 1.5A charging for the connected USB Type-A devices (mobile phones, tablets, U-disk, etc). One of the two USB Type-C ports is designed for transmitting data and charging for the connected USB Type-C device, the other USB Type-C port supports both data and PD3.0 charging. It can work on any USB Type-C host (PC, notebook, tablet, Mobile phone, etc) that supports Power Delivery 3.0.
High Power Conversion Efficiency means low power consumption and low heating 98.2%@Vin=5V; 92.5% @Vin=20V.
Advanced Power Management. The output power will guarantee uninterrupted working of USB Type-A SSD and U Disk when the Vin is in 5; 20V, so the connected USB device will not get disconnected while plugging in and out the PD Charger from the USB Type-C charging port.
Supported USB device current is as follows: 1.5A @PD3.0 device

Note:
1) When the current of the connected USB device is higher than the above listed current, the USB device will get disconnected while plugging the PD Charger and reconnect in a few seconds
2) When working on PD 2.0 supported host PC, the connected USB Type-A device will get disconnected while plugging out the USB Type-C PD Charger and then reconnect in a few seconds

Support Fast Role Swap of PD 3.0 the connected device will not get disconnected while plugging in and out PD Charger when working on PD 3.0 device

Other features



Cable length



0.254 m


Cable type



Round cable


Package dimensions



Depth (package,cm)



3.5 cm


Gross Weight (Package, kg)



2.47 kg


Height (package,cm)



32 cm


Width (package,cm)



7 cm


Packaging data



Quantity per pack



1 pc(s)


Performance



Certification



ROHS, FCC, CE EMI


Hub interfaces



USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C


Plug and Play



Yes


Product colour



Black, Silver


Ports & interfaces



Host interface



USB 3.2 Gen 2 (3.1 Gen 2) Type-C


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity



2


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity



2


USB Power Delivery



Yes


USB Power Delivery revision



3.0


USB Power Delivery up to



100 Watt


Power



Output current



1.5 A


Output voltage



5 - 20 V


Power supply type



USB


Product dimensions



Net Weight (Product, kg)



1.9 kg


Product Depth



4.5 cm


Product Height



1.2 cm


Product Width



8.5 cm


Software



Mac operating systems supported



Y, Yes


Windows operating systems supported



Yes


Vendor information



Brand Name


Club3D


Warranty



1 Year(s)
