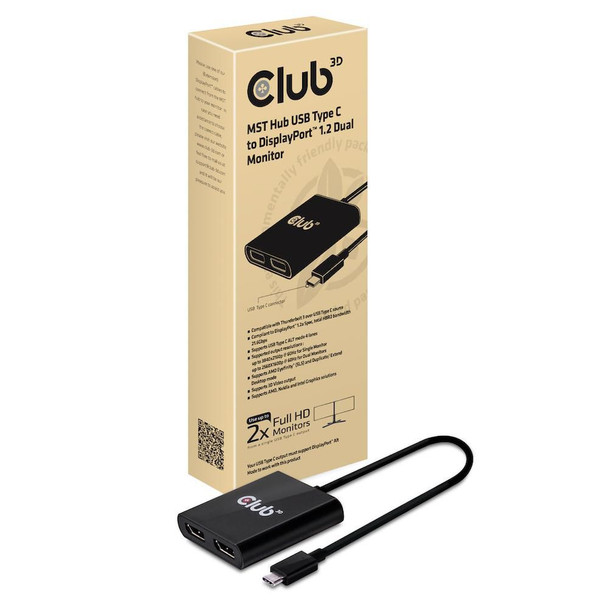

Club3D CSV-1545 adaptor USB 3.1 Typ C > 2xDP CSV-1545

Displays have always been a key part of the PC experience. PC Gamers want a more immersive experience and Professionals seek more desktop space to run apps side by side and increase their productivity.The easiest solution is to add multiple Monitors to an existing Laptop or Desktop PC.

The SenseVision MST Hub USB 3.1 Gen1 Type C to DisplayPort� 1.2 Dual Monitor is an invaluable tool for gaming, multitasking, or simply for the fun of it. This product enables that multiple individual video signals can be send through a single USB 3.1 Gen1 Type C output with Displayport Alt Mode support, and sends those to the connected Screens.

Note: When using an video output with DisplayPort� (Alt Mode) 1.1 support, the MST hub will act as a splitter, automatically mirroring your video source across the displays.

AMD Eyefinity�
Enjoy the ultimate immersive gaming experience. With AMD EYEFINITY technology, you can connect up to 6 displays to an individual graphics card by using SenseVision MST Hub(s). Each monitor can have an independent video signal or you can create a Single Large Surface (SLS).

Add on
Enjoy the ultimate immersive gaming experience. With AMD EYEFINITY technology, you can connect up to 6 displays to an individual graphics card by using SenseVision MST Hub(s). Each monitor can have an independent video signal or you can create a Single Large Surface (SLS).

Ultimate in Color and Image Quality
Ideal for photography, graphic design, media creation and other color-critical applications. The SenseVision MST Hub USB Type C to DisplayPort� 1.2 Dual Monitor supports 6 / 8 / 10 / 12 bit color depth.

Dual Mode DisplayPort�
The SenseVision MST Hub USB Gen1 Type C to DisplayPort� 1.2 Dual Monitor supports Dual Mode DisplayPort� (DP++) which allows the use of DVI or HDMI� Monitors via passive adapters. With multiple Monitors, games become more immersive, workstations become more productive.

Features



Cable length



0.29 m


Certification



CE,EMI, FCC ROHS


Colour depth



12 bit


Connector contacts plating



Gold


Full HD



Yes


HDCP



Yes


Maximum refresh rate



60 Hz


Plug and Play



Yes


Product colour



Black


Supported graphics resolutions



1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160


Logistics data



Harmonized System (HS) code



85176990


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



3.5 cm


Width (package,cm)



28 cm


Packaging content



User guide



Yes


Packaging data



Package length



8 cm


Ports & interfaces



Connector(s)



USB 3.1 Type C


Video out



2x DisplayPort


Video ports quantity



2


Power



AC input voltage



5 V


Input current



0.22 A


Input voltage



5 V


Product dimensions



Net Weight (Product, kg)



0.23 kg


Technical details



Connection to PC



Yes


Connector type



USB Type C (Gen1)


Vendor information



Brand Name


Club3D


Warranty



1 Year(s)


Weight & dimensions



Dimensions (WxDxH)



60 x 58 x 13.6 mm
