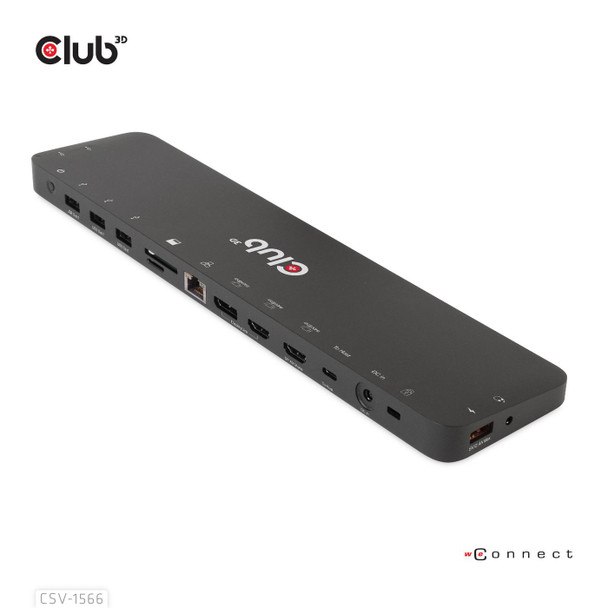

Club3D CSV-1566 Usb Gen1 Type-C Triple CSV-1566

The Club 3D CSV-1566 USB Gen1 Type-C Triple Display DP™ Alt mode + Displaylink™/ USB mode™ Dynamic PD Charging Dock with 120 Watt PS, is an integrated solution combining Video, Data, Power, Ethernet and Audio. This Dock is perfectly suited for extending a Type-C port or USB-A port(via a Type-C to USB converter) to provide multiple audio, video, data and power ports, providing an ideal solution to satisfy users who require multiple ports. This dock has 3 video ports (2 HDMI™, one from DP™1.2 Alt mode, one from USB mode, 1 Displayport™ from USB mode) for video experience, 4 USB Gen1 Type-A and 1 USB Gen1 Type-C for data transmission, RJ45 for super high speed Ethernet, SD/TF card slots for connecting memory cards. Besides, it has a smart charging port, bringing fast charging performance for connected mobile devices (Apple, Samsung phones, pads, etc). A 120W power adapter is provided to supply power for the function of this dock and charge the host with a max 80W (20V/4A). This dock is a bottom design with can be put underneath the host. It can work on DP™1.2 Alt mode supported USB Type-C and -A hosts.

Logistics data



Harmonized System (HS) code



84733020


Network



Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


Other features



Voltage



20.5 V


Package dimensions



Depth (package,cm)



11.5 cm


Gross Weight (Package, kg)



2.47 kg


Height (package,cm)



6.5 cm


Width (package,cm)



36 cm


Packaging content



AC adapter included



Yes


Cables included



USB Type-C


Quick start guide



Yes


Packaging data



Quantity per pack



1 pc(s)


Performance



Card reader integrated



Yes


Certification



Meets ROHS, FCC, and CE EMI requirements


Compatibility



Lenovo Dell Acer Asus. MSI. Toshiba Apple HP Razer


Compatible memory cards



MicroSD (TransFlash), SD


Plug and Play



Yes


Product colour



Black


Ports & interfaces



Combo headphone/mic port



Yes


Connectivity technology



Docking


DC-in jack



Yes


DisplayPorts quantity



1


HDMI ports quantity



2


HDMI version



2.0


Host interface



USB 3.2 Gen 1 (3.1 Gen 1) Type-C


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity



1


USB Power Delivery



Yes


USB Type-C DisplayPort Alternate Mode



Yes


Power



Power source type



DC


Product dimensions



Net Weight (Product, kg)



1.9 kg


Product Depth



7.7 cm


Product Height



1.8 cm


Product Width



30.4 cm


Vendor information



Brand Name


Club3D


Warranty



1 Year(s)
