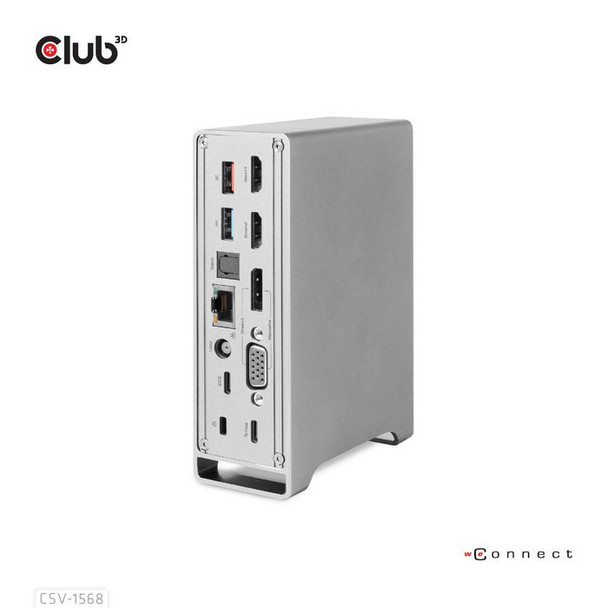

Club3D CSV-1568 Docking StationMetal CSV-1568

The Club 3D CSV-1568 USB Gen2 Type-C Triple Display DP� Alt mode + Smart PD Charging Dock with 120 Watt PSU, is an integrated solution combining Video, Data, Power, Ethernet and Audio. It has 4 videos (output 3 videos simultaneously under MST mode) for video transmission, 4 USB data ports (2 USB-A 10G, 1 Type-C 10G, 1 USB-A 5G) for data transmission, 1 USB-A smart charging port for quick charging, 1 Gigabit Ethernet for super fast Ethernet, 2 audio ports (3.5mm audio, Toslink) for enjoying music. Besides, this dock is equipped with dual power jack (Type-C PD Charging or 120W DC power supply).

It supports all DP Alt mode1.4/1.2 supported Type-C and Thunderbolt� 3 host (PC, laptop, mobile phone, etc.) under Windows and under MacOS X based on Intel you will only get limited SST Function or Single display Only.

Logistics data



Harmonized System (HS) code



84733020


Network



Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


Other features



Special features



In the box: CSV-1568 Docking Station PowerSupply Input:100-110/240VAC, Output: up to 120W USB Gen2 Type-C cable 10G, 20V5A M/M, 1 m / 3.28 ft Detachable stand Quick Install Guide


Voltage



20.5 V


Package dimensions



Depth (package,cm)



15.5 cm


Gross Weight (Package, kg)



2.47 kg


Height (package,cm)



9.7 cm


Width (package,cm)



22.5 cm


Packaging content



AC adapter included



Yes


Quick start guide



Yes


Stand included



Yes


Packaging data



Quantity per pack



1 pc(s)


Performance



Brand compatibility



Apple


Card reader integrated



Yes


Certification



Meets ROHS, FCC, and CE EMI requirements


Compatibility



Lenovo Dell Acer Asus MSI Toshiba Apple HP Razer


Data transfer rate



16.2 Gbit/s


High Dynamic Range (HDR) supported



Yes


Key lock



Yes


Maximum refresh rate



60 Hz


Plug and Play



Yes


Product colour



Metallic


Ports & interfaces



Combo headphone/mic port



Yes


Connectivity technology



Docking


DC-in jack



Yes


DisplayPort version



1.4


DisplayPorts quantity



1


HDCP



Yes


HDCP version



1.4/2.2


HDMI ports quantity



2


Headphone connectivity



3.5 mm


Host interface



USB 3.2 Gen 2 (3.1 Gen 2) Type-C


Thunderbolt 3 Power Delivery



Yes


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



1


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity



2


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity



1


USB Power Delivery



Yes


USB Power Delivery revision



3.0


USB Power Delivery up to



100 Watt


USB Type-C DisplayPort Alternate Mode



Yes


VGA (D-Sub) ports quantity



1


Power



AC input voltage



100 - 240 V


Power cable length



1 m


Power connector



USB Type-C


Power consumption (max)



120 Watt


Power source type



DC


Power supply



120 Watt


Product dimensions



Net Weight (Product, kg)



1.9 kg


Product Depth



9 cm


Product Height



4.4 cm


Product Width



13.9 cm


Software



Mac operating systems supported



Y, Yes


Windows operating systems supported



Yes


Vendor information



Brand Name


Club3D


Warranty



1 Year(s)
