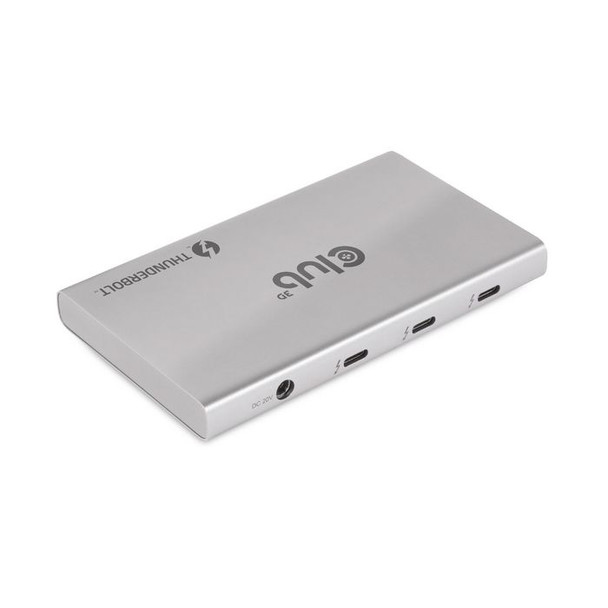

Club3D CSV-1580 Certified ThunderboltT4 CSV-1580

The Club 3D CSV-1580 is a Certified Thunderbolt� 4 portable Hub which provides the most advanced, efficient, and versatile I/O solution available with up to 40Gb/s for data and video. For the first time this Thunderbolt� 4 modern Hub has 3 Thunderbolt� 4 downstream ports that allow you to cascade Thunderbolt� 4 devices to one 8K30Hz or two 4K60Hz monitors, it can also easily connect to any USB Type-C device, all while simultaneously charging the PC. Besides, it supports Smart Power function which enables to distribute power according to the power consumption of the connected device, making full use of the external power supply. It is designed for Thunderbolt� 4 based PCs and Thunderbolt� 3 based Macs� utilizing MacOS� 11 and later versions.

Features



Packaging languages



English


Logistics data



Harmonized System (HS) code



84733020


Network



Ethernet LAN



No


Package dimensions



Depth (package,cm)



15 cm


Gross Weight (Package, kg)



2.47 kg


Height (package,cm)



7 cm


Width (package,cm)



22 cm


Packaging content



AC adapter included



Yes


Quick start guide



Yes


Packaging data



Quantity per pack



1 pc(s)


Performance



Card reader integrated



No


Compatibility



OS Support: Windows10� or above version supported Thunderbolt� 4 host MacOS� 11 or above version supported Thunderbolt� 3 host


Plug and Play



Yes


Product colour



Silver


Ports & interfaces



Connectivity technology



Docking


Host interface



Thunderbolt 4


Microphone in



No


Thunderbolt 4 ports quantity



4


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity



1


Power



Output current



5 A


Output voltage



20 V


Power consumption (max)



60 Watt


Power source type



DC


Power supply



10 Watt


Product dimensions



Net Weight (Product, kg)



1.9 kg


Product Depth



7.4 cm


Product Height



1.3 cm


Product Width



12.4 cm


Software



Mac operating systems supported



Mac OS X 11.0 Big Sur


Windows operating systems supported



Windows 10


Sustainability



Sustainability certificates



CE, Federal Communications Commission (FCC), RoHS


Vendor information



Brand Name


Club3D


Warranty



1 Year(s)
