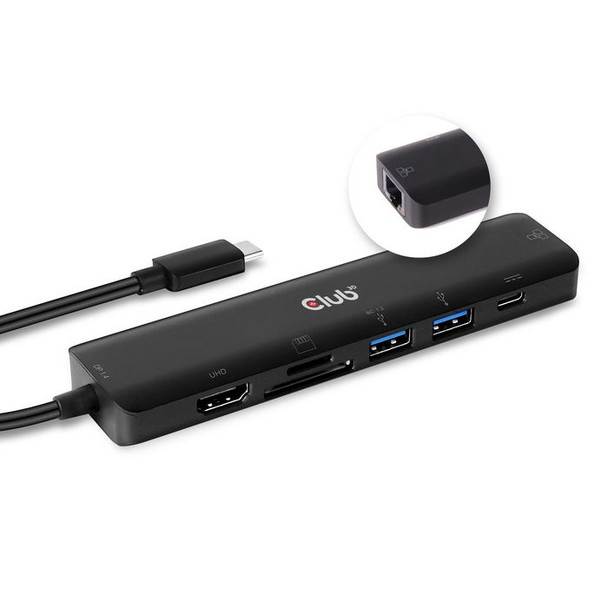

Club3D CSV-1592 Usb Type C 7In1 Hub Hdmi CSV-1592

CSV-1592 - The Club 3D Hub is a USB Type C 7-in-1 Hub to HDMI™ 4K60Hz /SD-TF Card slot / 2x USB Type A / USB Type C PD / RJ45, providing an ideal solution for extending the port of USB Type C or Thunderbolt™ 3 host (PC/Laptop/tablet/Mobile phone, etc.),especially for the host with a single USB Type C port. This hub adopts the latest DP 1.4 Alt mode technology available today, enabling to output HDMI™ video with max 4k/60Hz and at the meanwhile transfer USB 3.1 data with max 5Gbps. 2x USB Type A ports allow you to connect 2 USB devices simultaneously.

SD/Micro SD allow to insert 2 card slots simultaneously for data transmission or for reading/writing information on the host. RJ45 ports allows the host to get access to Gigabit Ethernet. Besides, the USB Type C female supports PD 3.0 with max 100W PD Charging. It can work on all USB Type C and Thunderbolt™3 host that supports DP Alt mode(including DP1.2 and DP1.4 Alt mode).When working on Thunderbolt™3 host, this product transmits DP signal.

Logistics data



Harmonized System (HS) code



84733020


Network



Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


Ethernet LAN data rates



10, 100, 1000


Package dimensions



Depth (package,cm)



6 cm


Gross Weight (Package, kg)



2.47 kg


Height (package,cm)



3 cm


Width (package,cm)



32 cm


Packaging content



Manual



Yes


Packaging data



Quantity per pack



1 pc(s)


Performance



Card reader integrated



Yes


Certification



FCC, CE EMI


Charging function



Yes


Compatibility



Lenovo Dell Acer Asus. MSI. Toshiba Apple HP Razer


Compatible memory cards



MicroSD (TransFlash), MicroSDHC, MicroSDXC, MiniSD, SD, SDHC


HD type



4K Ultra HD


Maximum digital resolution



3840 x 2160 Pixels


Plug and Play



Yes


Product colour



Black


Ports & interfaces



Connectivity technology



Docking


HDMI ports quantity



1


HDMI version



2.0


Host interface



USB 3.2 Gen 1 (3.1 Gen 1) Type-C


Microphone in



No


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity



1


USB Power Delivery



Yes


USB Power Delivery up to



100 Watt


USB Type-C DisplayPort Alternate Mode



Yes


Power



Power connector



USB Type-C


Power source type



USB


Product dimensions



Net Weight (Product, kg)



1.9 kg


Product Depth



3.4 cm


Product Height



1.4 cm


Product Width



13.6 cm


Software



Linux operating systems supported



Y, Yes


Mac operating systems supported



Y, Yes


Windows operating systems supported



Yes


Sustainability



Sustainability certificates



RoHS


Vendor information



Brand Name


Club3D


Warranty



1 Year(s)
