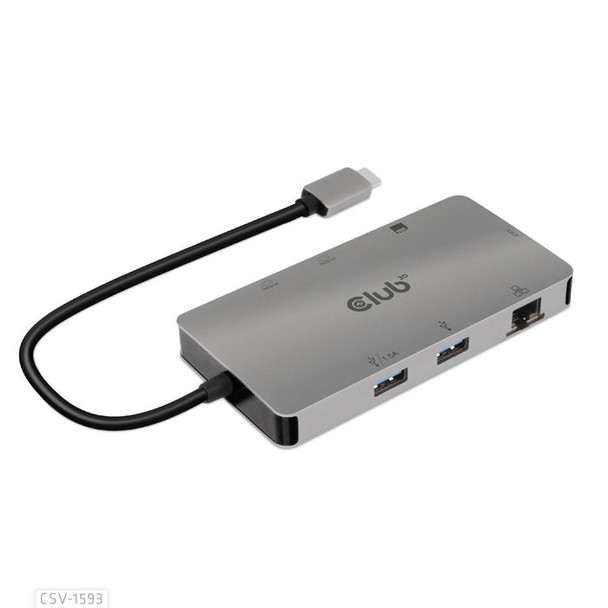

Club3D CSV-1593 Type-C 8-In-1 Hub With 2X CSV-1593

The Club 3D CSV-1593 USB 3.2 Gen1 Type-C 8-in-1 hub with 2 HDMI�, 2 USB-A, RJ45, SD/Micro SD card slots and Type-C female port, providing an ideal solution for extending your USB3.2 Gen1 Type-C or Thunderbolt�3 host port (PC/Laptop/Mobile phone,etc.). Especially for those host with a single Type-C port. This hub adopts the latest DP1.4 Alt mode support, enabling to output HDMI� video with max 4k60Hz or dual max 4K30Hz under MST mode and simultaneously transfer USB 3.2Gen1 data with max 5Gbps. 2x USB Type-A ports allow you to connect 2 USB devices simultaneously. The SD/Micro SD ports allow to insert 2 card into the slots simultaneously for data transmission or for reading/writing information on the host. The RJ45 port allows the host to get access to Gigabit Ethernet. Besides, the USB 3.2 Gen1 Type-C female supports PD 3.0 with max. 100W PD Charging. It can work on all USB3.2 Gen1 Type-C and Thunderbolt�3 host that supports DP Alt mode(including DP1.2 and DP1.4 Alt mode). When working on Thunderbolt�3 host, this product transmits DP signal.

Features



Cable length



0.14 m


Certification



Meets ROHS, FCC, and CE EMI requirements


Compatible products



Lenovo Dell Acer Asus. MSI. Toshiba Apple HP Razer


Data transfer rate



16200 Mbit/s


Maximum resolution (HDMI)



3840 x 2160 Pixels


Plug and Play



Yes


Product colour



Metallic


Logistics data



Harmonized System (HS) code



84719000


Network



Ethernet interface type



Gigabit Ethernet


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Ports & interfaces



HDMI ports quantity



2


Host interface



USB 3.2 Gen 1 (3.1 Gen 1) Type-C


Hub interfaces



HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C


Ports quantity



8


USB 2.0 ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity



1


USB Type-C DisplayPort Alternate Mode



Yes


Product dimensions



Net Weight (Product, kg)



0.2 kg


Vendor information



Brand Name


Club3D


Warranty



1 Year(s)
