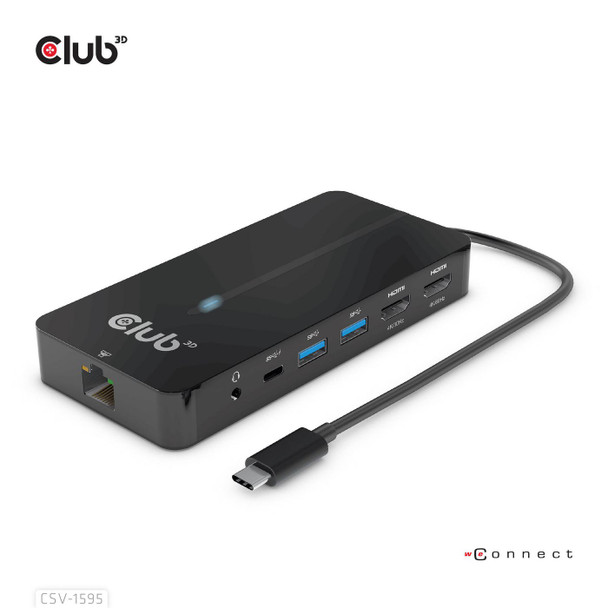

Club3D CSV-1595 Type-C 7-In-1 Hub With 2X CSV-1595

The Club 3D CSV-1595 USB Gen1 Type-C 7-in-1 hub with with 2x HDMI�, 2x USB Gen1 Type-A, 1x RJ45, 1x 3.5mm Audio, 1x USB Gen1 Type-C 100W Female port, provides a very advanced, efficient solution to extend a single USB Gen1 Type-C port to multiple ports. It integrates video, data and power ports that allows to connect 2 displays simultaneously for enjoying videos on a larger screen, connect multiple USB Gen1 devices for data transmission up to 5Gbps, connect a Gigabit Ethernet source for getting your PC connected to super high speed network, or connect to headset to enjoy fantastic music. It also provides PD charging for support up to max. 100W PD charging. This is for operating this device and charge the host simultaneously. It can work on all DP�1.4 Alt mode supported USB Gen1 Type-C hosts.

Network



Ethernet LAN (RJ-45) ports



1


Ethernet LAN data rates



10, 100, 1000


Other features



Cable length



0.25 m


Cable type



Round cable


Package dimensions



Depth (package,cm)



3.5 cm


Gross Weight (Package, kg)



2.47 kg


Height (package,cm)



21 cm


Width (package,cm)



21 cm


Packaging data



Quantity per pack



1 pc(s)


Performance



Certification



ROHS, FCC, CE EMI


HD type



4K Ultra HD


Hub interfaces



3.5mm, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C


Maximum refresh rate



60 Hz


Number of displays supported



2


Plug and Play



Yes


Product colour



Black


Ports & interfaces



Combo headphone/mic port



Yes


HDCP



Yes


HDCP version



2.2


HDMI ports quantity



2


Host interface



USB 3.2 Gen 1 (3.1 Gen 1) Type-C


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity



1


USB Power Delivery



Yes


USB Power Delivery revision



3.0


USB Power Delivery up to



100 Watt


USB Type-C DisplayPort Alternate Mode



Yes


Power



Output current



1.5 A


Output voltage



5 V


Power consumption (max)



7.5 Watt


Product dimensions



Net Weight (Product, kg)



1.9 kg


Product Depth



6.5 cm


Product Height



1.9 cm


Product Width



14 cm


Software



Mac operating systems supported



Y, Yes


Windows operating systems supported



Yes


Vendor information



Brand Name


Club3D


Warranty



1 Year(s)
