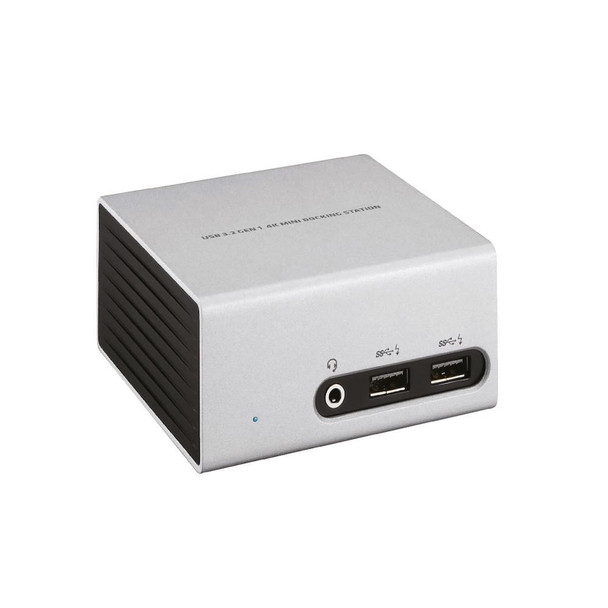

Club3D CSV-3104D 4K MiniDoc 4xUSB3/HDMI/DVI/LAN CSV-3104D

The Club 3D USB 3.0 4K UHD Mini Docking Station with brushed aluminum design, allows you to expand the outputs of your laptop or ultrabook so it can be used as a traditional desktop PC.

With the advanced DisplayLink DL-5900 chip inside, Club3D�s USB 3.0 4K UHD Mini Docking Station is able to offer you the perfect solution to connect all your favorite USB devices (*4), as well as connect two external monitors via HDMI� and a DVI-D Connector, in addition to an Ethernet network Connection it also offers an Audio/Microphone output all via a single USB cable.

Because of its convenient and compact design, the Club 3D USB 3.0 4K UHD Mini Docking Station is a versatile tool that provides you maximum functionality from your Small desktop replacement or mobile companion.

Design:The Club3D USB 3.0 4K UHD Mini Docking Station has a modern and minimalistic design and combines the functionality normally found in larger Docking Stations with a convenient, solid and highly portable casing. The miniature size makes it easy to take it with you wherever you go. Use it without external power for maximum mobility*. (*Limits functionality)

Network



Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


Ethernet LAN data rates



10, 100, 1000


Other features



Energy Star certified



Yes


Number of microphone inputs



1


Package dimensions



Depth (package,cm)



14.2 cm


Gross Weight (Package, kg)



0.99 kg


Height (package,cm)



5.5 cm


Width (package,cm)



22.5 cm


Packaging content



AC adapter included



Yes


Cables included



USB


Drivers included



Yes


Quick start guide



Yes


Performance



Card reader integrated



No


Charging function



Yes


Compatibility



Lenovo Dell Acer Asus. MSI. Toshiba Apple HP Razer


Housing material



Aluminium


LED indicators



Power


Maximum digital resolution



3840 x 2160 Pixels


Number of displays supported



2


Product colour



Black, Silver


Ports & interfaces



Combo headphone/mic port



Yes


Connectivity technology



Wired


DC-in jack



Yes


DVI-D ports quantity



1


HDMI ports quantity



1


HDMI version



1.4


Headphone connectivity



3.5 mm


Headphone outputs



1


Host interface



USB 3.2 Gen 1 (3.1 Gen 1) Type-A


Line-out



Yes


Microphone in



Yes


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


Power



Output current



3 A


Output voltage



12 V


Power consumption (max)



36 Watt


Power consumption (typical)



14.43 Watt


Power source type



DC


Product dimensions



Net Weight (Product, kg)



0.89 kg


Product Depth



4.9 cm


Product Height



4.4 cm


Product Width



9.5 cm


Software



Windows operating systems supported



Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64


Sustainability



Sustainability certificates



ENERGY STAR


Technical details



Harmonized System (HS) code



84733020


Sustainability certificates



ENERGY STAR


Vendor information



Brand Name


Club3D


Warranty



1 Year(s)
