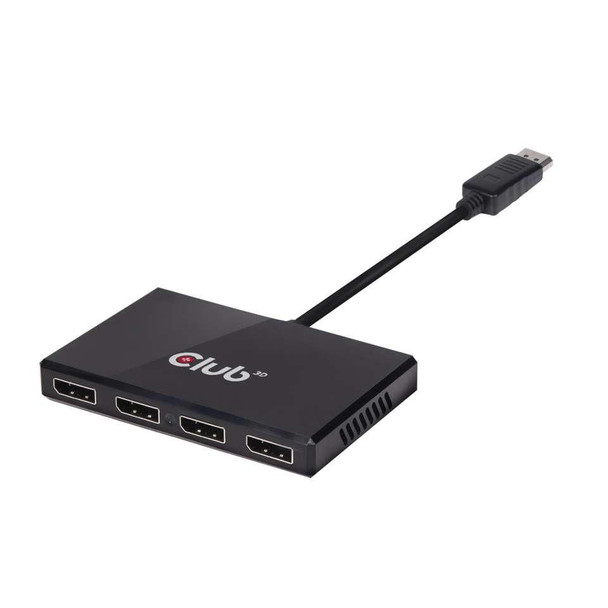

Club3D CSV-6400 Multi Stream Transport Hub CSV-6400

CSV-6400 - The Club3D SenseVision MST Hubs utilize Multi Stream Transport, a unique DisplayPort� 1.2 feature that creates the ability to transport multiple independent uncompressed display (and audio) streams over a single cable, supporting protected content and high performance applications such as 3D gaming. This enables the use of multiple monitors connected by MST hub configuration. The Club3D MST Hubs is able to distribute those video streams to the connected screens. The Club3D MST Hubs do not increase the bandwidth of DisplayPort� 1.2 outputs, but it enbales the optimal use of it.

DisplayPort� Dual Mode
Also known as DP++, is a feature which enables the output of single-link DVI and HDMI� signals from the DP output. Passive adapters should be used to convert to HDMI� and/or DVI connectors.

Note: When using a DisplayPort� 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays.

Features



3D



Yes


Cable length



0.13 m


Certification



EMI CE, FCC, WEEE, ROHs


Easy to install



Yes


Full HD



Yes


HDCP



Yes


HD-Ready



Yes


Maximum refresh rate



60 Hz


Maximum resolution



1920 x 1080 Pixels


Plug and Play



Yes


Power LED



No


Product colour



Black


Logistics data



Harmonized System (HS) code



85176990


Products per master (outer) case



5 pc(s)


Package dimensions



Depth (package,cm)



1.8 cm


Gross Weight (Package, kg)



0.5 kg


Width (package,cm)



16 cm


Packaging content



Cables included



DisplayPort, USB


Packaging content



� Multi Stream Transport (MST) Hub DisplayPort� 1.2 Quad Monitor USB Powered � USB to Micro USB Cable for power � Quick install guide


User guide



Yes


Packaging data



Package length



24 cm


Ports & interfaces



Video out



4x DisplayPort


Video port type



DisplayPort


Video ports quantity



4


Power



USB powered



Yes


Product dimensions



Net Weight (Product, kg)



0.4 kg


Technical details



Connection to system unit



DisplayPort 1.2


Technical features



Resolution Support up to: 4 x 1920 x 1080 at 60Hz


Vendor information



Brand Name


Club3D


Warranty



1 Year(s)


Weight & dimensions



Dimensions (WxDxH)



65 x 104 x 14 mm
