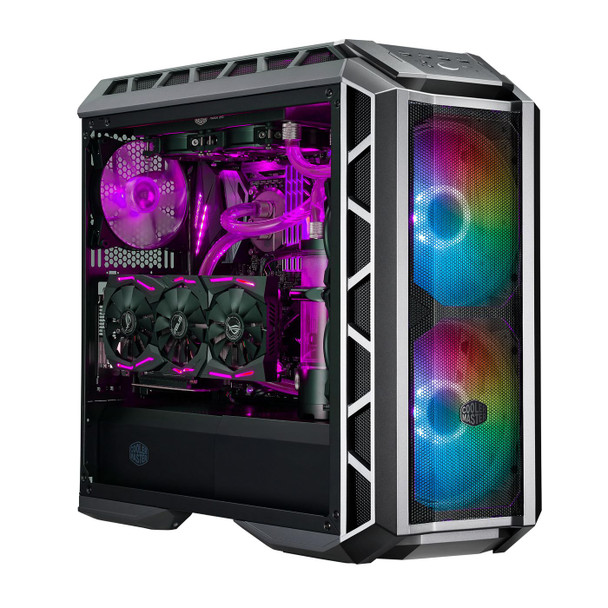

Cooler Master MCM-H500P-MGNN-S11 Mastercase H500P Mesh Argb MCM-H500P-MGNN-S11

Equal parts refined, rugged, & ruthless.
Every serious gaming system requires a substantial amount of airflow. Not just for freshly built rigs, but also for upgrading hardware in the future. The MasterCase H500P Mesh ARGB was engineered for exactly that. Now, with dual 200mm ARGB fans, premium addressable lighting comes pre-installed—one upgrade checked off.

Mesh spans the entire front to provide an unrestricted pathway for air, fed to the two massive fans behind the panel. Whether extreme water-cooling or air-cooling is the preferred method, the MasterCase H500P Mesh ARGB delivers versatility, performance, and customizability with ARGB lighting to boot.

Dual 200mm ARGB Fans
The iconic, addressable RGB fans are the core of the H-Series in design and function, capable of operating quietly while moving high volumes of air due to their size.

Mesh Front Panel
Two layers of mesh make up the entire front panel to maximize airflow. A finer layer filters out dust while the steel mesh reinforces its structure.

Build By Design
Transparent panels and a tempered glass side panel flaunt the hardware & fans, while the cable covers, PSU shroud, and cable management space hide the clutter.

ARGB Lighting System
The pre-installed ARGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive ARGB lighting system.

Tempered Glass Side Panel
Gaming hardware, custom-loop cooling, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.


ARGB Controller​
​The small ARGB Controller is a mini-sized controller that allows your Addressable RGB such as fans and LED strips to be powered and controlled even in PC systems without an A-RGB capable motherboard.​

The controller comes with 14 lighting presets to make full use of the Addressable LEDs in the system and also allows to be completely switched off by long pressing its button.​

It is also possible to attach any external 2pin button to it to be able to switch presets without having to open the system. For ease of use, Cooler Master allows the RESET button to be optionally connected to the controller and used as an external ARGB preset switch button.

Cooling



Front fans diameters supported



120, 140, 200


Front fans installed



2x 200 mm


Front radiator fan sizes supported



120, 140, 240, 280, 360


Number of front fans supported (max)



3


Number of top fans supported (max)



3


Rear fans installed



1x 140 mm


Rear radiator fan sizes supported



120, 140


Top fans diameters supported



120, 140, 200


Top radiator sizes supported



120, 140, 240, 280, 360


Design



Form factor



Midi Tower


Illumination



Yes


Illumination colour



Multi


Illumination location



Case fans


Material



Mesh, Plastic, Steel, Tempered glass


Maximum CPU cooler height



19 cm


Maximum graphics card length



41.2 cm


Maximum PSU length



22 cm


Number of 2.5" bays



4


Number of 3.5" bays



2


Number of expansion slots



9


Product colour



Grey


Side window



Yes


Supported motherboard form factors



ATX, EATX, micro ATX, Mini-ITX


Type



PC


Logistics data



Harmonized System (HS) code



84733080


Package dimensions



Depth (package,cm)



64 cm


Gross Weight (Package, kg)



14.69 kg


Height (package,cm)



65 cm


Width (package,cm)



34.5 cm


Ports & interfaces



Audio input



N


Audio output



Y


USB 2.0 ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


Power supply



Power supply included



No


Power supply location



Bottom


Supported power supply form factors



ATX


Product dimensions



Net Weight (Product, kg)



11.3 kg


Product Depth



54.4 cm


Product Height



54.2 cm


Product Width



24.2 cm


Storage



Supported HDD sizes



2.5, 3.5, 5.25


Vendor information



Brand Name


Cooler Master


Warranty



1 Year(s)
