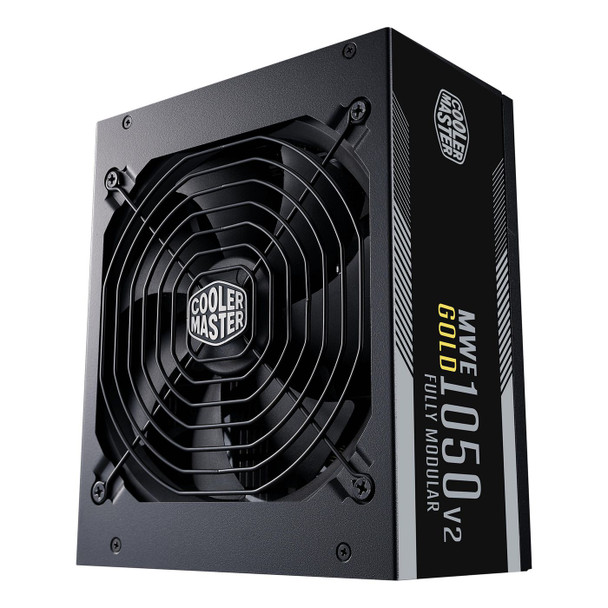

Cooler Master MPE-A501-AFCAG-3EU Mwe Gold 1050 - V2 Full MPE-A501-AFCAG-3EU

Full Modular 80 Plus Gold PSU

Power Up
The new MWE Gold V2 1050, 1250 series is the next step in the evolution of Cooler Master's entry level 80 Plus Gold Power Supply line which improves upon the original version in the places where users will see the most immediate benefit in terms of performance and stability for high end pc requirements.

80 PLUS Gold Certified
The MWE Gold V2 1050, 1250 series delivers an 80 Plus Gold certification, guaranteeing a typical minimum efficiency of 90%.

RTX Ready
The MWE 1050 Gold - V2 comes standard with 2 EPS connectors, 6 PCI-e connectors, and a high maximum wattage in order to ensure universal compatibility with all current gen motherboards and RTX 30 series graphics cards. You can build the high end system of your dreams and run all the latest games without having to break the bank on your PSU. This unit has all the necessary features to power the newest components for a great price.

Silence Fan with Smart Temp. Controlling Feature
MWE Gold 1050 & 1250 are equipped with a 140mm silence fan with smart temperature controlling feature. The fan supports 0 RPM to achieve 0 noise based on the scenario.

Design



Cooling type



Active


Fan diameter



14 cm


Fan speed



0 - 2200 RPM


Number of fans



1 fan(s)


Product colour



Black


Logistics data



Master (outer) case height



23.5 cm


Master (outer) case length



36 cm


Master (outer) case width



51 cm


Master (outer) cases per pallet



24 pc(s)


Operational conditions



Operating temperature (T-T)



0 - 40 �C


Other features



EPS cable length



65 cm


Noise level (full-load mode, 100%)



27.3 dB


Noise level (quiet mode, 50%)



14.9 dB


Package dimensions



Depth (package,cm)



19.7 cm


Gross Weight (Package, kg)



0.65 kg


Height (package,cm)



12.2 cm


Width (package,cm)



31 cm


Performance



ATX version



2.52


Bearing technology



FDB


Certification



ErP 2014 Lot 3, TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB


Mean time between failures (MTBF)



100000 Hour


Power supply unit (PSU) form factor



ATX


Purpose



PC


Ports & interfaces



Cabling type



Modular


EPS power connector (4+4 pin)



Yes


EPS power connector (8-pin)



Yes


Motherboard power cable length



65 cm


Motherboard power connector



24-pin ATX


Number of SATA power connectors



12


PCI Express power cable length



67 cm


PCI Express power connectors (6+2 pin)



6


Peripheral (Molex) power cable length



500, 620, 740, 860


Peripheral (Molex) power connectors (4-pin)



4


SATA power cable length



500, 620, 740, 860


Power



AC input frequency



47 - 63 Hz


AC input voltage



90 - 264 V


Combined power (+12V)



1050 Watt


Combined power (+3.3V)



120 Watt


Combined power (+5V)



120 Watt


Combined power (+5Vsb)



15 Watt


Combined power (-12V)



3.6 Watt


Efficiency



90 %


Hold time



20 Millisecond


Input current



6 - 13 A


Max output current (+12V)



87.5 A


Max output current (+3.3V)



20 A


Max output current (+5V)



20 A


Max output current (+5Vsb)



3 A


Max output current (-12V)



0.3 A


Power Factor Correction (PFC) type



Active


Power Good signal delay range



100 - 150 Millisecond


Power protection features



Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage


Total power



1050 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



18 cm


Product Height



8.6 cm


Product Width



15 cm


Vendor information



Brand Name


Cooler Master


Warranty



1 Year(s)
