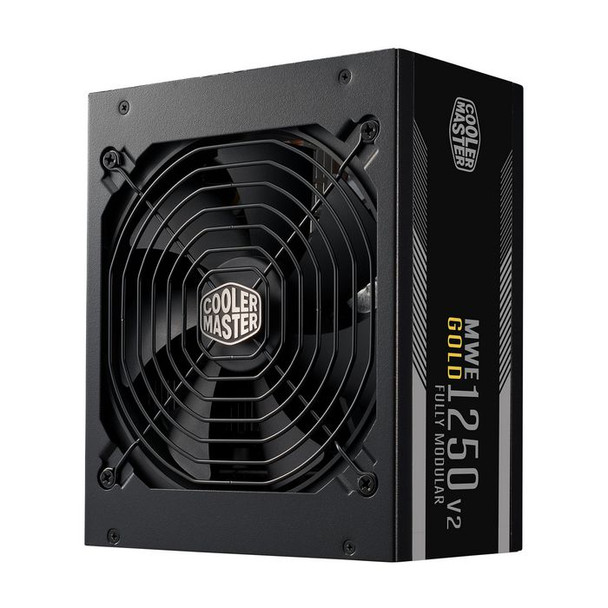

Cooler Master MPE-C501-AFCAG-3EU Mwe Gold 1250 - V2 Atx 3.0 MPE-C501-AFCAG-3EU

100% ATX 3.0 Compatible
Cooler Master took the initiative and continuously developing our first ATX3.0 Power Supply lineup. Compliant with ATX3.0 standard and 12VHPWR connectors, the MWE Gold 1050/1250 - V2 ATX3.0 can fully support the peak power drawn by the 40 series RTX graphic cards and whole system.

80 PLUS Gold Certified
Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The MWE Gold 1050/1250 - V2 ATX3.0 features 80 PLUS Gold certification, guaranteeing 90% efficiency at typical load.

Quiet Cooling
The MWE Gold 1050/1250 - V2 ATX3.0 has been optimized with an 140mm fan along with an advanced fluid-dynamic bearing(FDB) delivers quiet and effective cooling with a long lifespan. With Smart Thermal Control System(STCM), the fan will not spin until at 40% of rated output power to reduce noise.

Industrial-grade Temperature Resilience
The MWE Gold 1050/1250 - V2 ATX3.0 has improved to operate safely at up to 50 degrees Celsius ambient for high-end computer, overclocking and other high intensity applications. Such a high threshold greatly enhances the performance of your PSU and your system.

Fully Modular Cabling
The fully modular version of the MWE Gold 1050/1250 - V2 ATX3.0 comes with a set of flat black cables that can be customized to each user's individual needs. It's designed for easy cable management that each system only needs to include the cables required. This unused space within the chassis allows for reduced clutter, better airflow and aesthetic, thereby improving your system's overall cooling.

Design



Cooling type



Active


Fan diameter



14 cm


Number of fans



1 fan(s)


Product colour



Black


Logistics data



Master (outer) case height



22 cm


Master (outer) case length



62 cm


Master (outer) case width



32.5 cm


Master (outer) cases per pallet



24 pc(s)


Products per master (outer) case



4 pc(s)


Operational conditions



Operating temperature (T-T)



0 - 50 �C


Other features



EPS cable length



65 cm


Package dimensions



Depth (package,cm)



33.3 cm


Gross Weight (Package, kg)



0.65 kg


Height (package,cm)



12.2 cm


Width (package,cm)



19.7 cm


Performance



80 PLUS certification



80 PLUS Gold


ATX version



3.0


Bearing technology



FDB


Certification



ErP 2014 Lot 3


Mean time between failures (MTBF)



100000 Hour


Power supply unit (PSU) form factor



ATX


Purpose



PC


Ports & interfaces



Cabling type



Modular


EPS power connector (4+4 pin)



Yes


EPS power connector (8-pin)



Yes


Motherboard power cable length



65 cm


Motherboard power connector



24-pin ATX


Number of SATA power connectors



12


PCI Express power connectors (6+2 pin)



3


Peripheral (Molex) power cable length



500, 620, 740, 860


Peripheral (Molex) power connectors (4-pin)



4


SATA power cable length



500, 620, 740, 860


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Combined power (+12V)



1248 Watt


Combined power (+3.3V)



120 Watt


Combined power (+5V)



120 Watt


Combined power (+5Vsb)



15 Watt


Combined power (-12V)



3.6 Watt


Efficiency



90 %


Hold time



16 Millisecond


Input current



7 - 15 A


Max output current (+12V)



104 A


Max output current (+3.3V)



20 A


Max output current (+5V)



20 A


Max output current (+5Vsb)



3 A


Max output current (-12V)



0.3 A


Power Good signal delay range



100 - 150 Millisecond


Power protection features



Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage


Total power



1250 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



18 cm


Product Height



8.6 cm


Product Width



15 cm


Technical details



Sustainability certificates



CE, UKCA


Sustainability compliance



Yes


Vendor information



Brand Name


Cooler Master


Warranty



1 Year(s)
