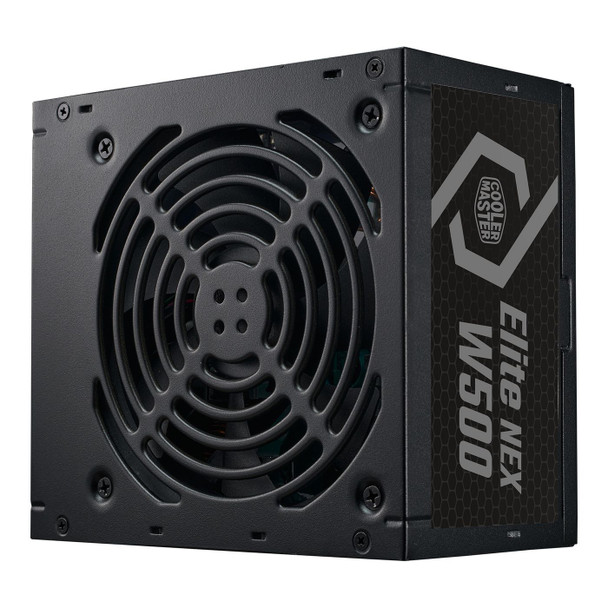

Cooler Master MPW-5001-ACBW-BEU Elite Nex White 230V 500 MPW-5001-ACBW-BEU

NEX Level ATX Power Supply

NEX Level Power
The Elite NEX White power supply unit is a dependable choice for entry level users and system integrators. The quiet 120mm fan, active PFC and 3 years warranty deliver a complete power solution at a popular price.

Active PFC + Dual Forward Topology Design
Constructed with the active PFC for high-end power supply and the dual forward topology design, it can not only reduce interference and increase power quality, but reduce power loss to increase efficiency.

High Temperature Resistance
It's capable of operating at 40°C under full load, allowing a longer lifespan in warmer environments.

Peak Power Tolerance
This unit can reliably push an additional 100W at peak power load for up to 20 seconds.

82% Efficiency
The power supply achieves an average efficiency of 82% at typical loads.

Design



Cooling type



Active


Fan diameter



12 cm


Number of fans



1 fan(s)


Product colour



Black


Logistics data



Master (outer) case height



22 cm


Master (outer) case length



50.3 cm


Master (outer) case width



26 cm


Master (outer) cases per pallet



64 pc(s)


Products per master (outer) case



5 pc(s)


Operational conditions



Operating temperature (T-T)



0 - 40 °C


Other features



EPS cable length



55 cm


Package dimensions



Depth (package,cm)



24.5 cm


Gross Weight (Package, kg)



0.65 kg


Height (package,cm)



9.5 cm


Width (package,cm)



19 cm


Performance



80 PLUS certification



80 PLUS White


ATX version



2.41


Bearing technology



Sleeve


Certification



ErP 2014 Lot 3, TUV, cTUVus, CE, FCC, CCC, EAC, UKCA


Mean time between failures (MTBF)



100000 Hour


Power supply unit (PSU) form factor



ATX


Purpose



PC/Server


Ports & interfaces



Cabling type



Non-Modular


EPS power connector (4+4 pin)



Yes


Motherboard power cable length



55 cm


Motherboard power connector



24-pin ATX


Number of SATA power connectors



5


PCI Express power cable length



62 cm


PCI Express power connectors (6+2 pin)



2


Peripheral (Molex) power cable length



550, 700, 400


Peripheral (Molex) power connectors (4-pin)



3


SATA power cable length



400, 550, 700


Power



AC input frequency



50 - 60 Hz


AC input voltage



200 - 240 V


Combined power (-12V)



3.6 Watt


Combined power (+12V)



456 Watt


Combined power (+3.3V)



100 Watt


Combined power (+5V)



100 Watt


Combined power (+5Vsb)



12.5 Watt


Efficiency



85 %


Hold time



10 Millisecond


Input current



4 A


Max output current (-12V)



0.3 A


Max output current (+12V)



38 A


Max output current (+3.3V)



18 A


Max output current (+5V)



16 A


Max output current (+5Vsb)



2.5 A


Power Factor Correction (PFC) type



Active


Power Good signal delay range



100 - 500 Millisecond


Power protection features



Over power, Over voltage, Overheating, Short circuit, Under voltage


Total power



500 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



14 cm


Product Height



8.6 cm


Product Width



15 cm


Vendor information



Brand Name


Cooler Master


Warranty



1 Year(s)
