CyberPower RELAYIO500 Interface Cards/Adapter RELAYIO500

RELAYIO500 | Hardware
Monitor and locally manage a Smart App UPS system

Product Overview

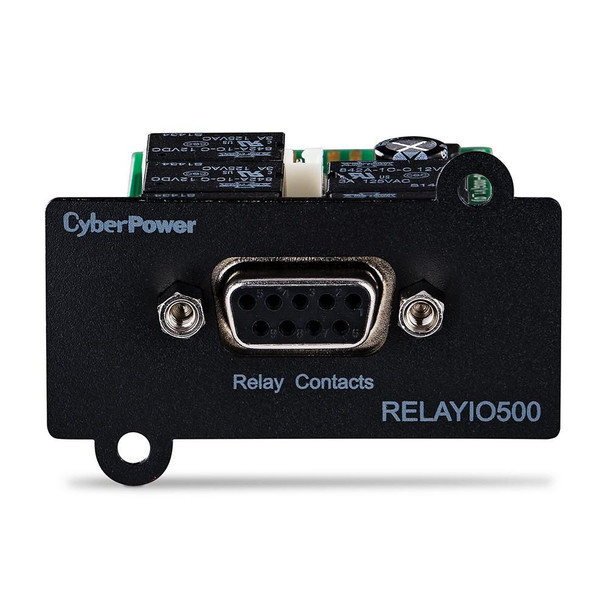

They CyberPower RELAYIO500 is a local management solution that provides users the ability to monitor UPS status and events via 5 contact closure outputs. Easy to install in any compatible* Smart App UPS with expansion slot.

Input contact closure allows the UPS to be shutdown remotely while on Battery Mode to preserver battery power in the event of a prolonged power outage. The RELAYIO500 comes with a three-year warranty.

Remote Shutdown in Battery Mode
Preserves battery power in the event of a prolonged power outage.

Interfacing with External Alarms
External alarm devices can be interfaced via the DB9 port.

Three-Year Warranty
Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.

Design



Certification



RoHS


Internal



Yes


Features



Plug and Play



Yes


Logistics data



Harmonized System (HS) code



84733020


Operational conditions



Operating relative humidity (H-H)



0 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



0 - 95 %


Storage temperature (T-T)



-10 - 50 �C


Other features



Compatibility



OR Series UPS systems, PR Series UPS systems, OL1000RTXL2U, OL1500RTXL2U, OL1500RTXL2UN, OL3000RTXL2UHV


Connector type



D9


Interface



UPS


Package dimensions



Depth (package,cm)



16.2 cm


Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



5.8 cm


Width (package,cm)



16.8 cm


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



8.1 cm


Product Height



1.42 cm


Product Width



4.18 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


CyberPower


Warranty



1 Year(s)
