D-Link DEM-211 Transceiver D-LDEM-211 100Base DEM-211

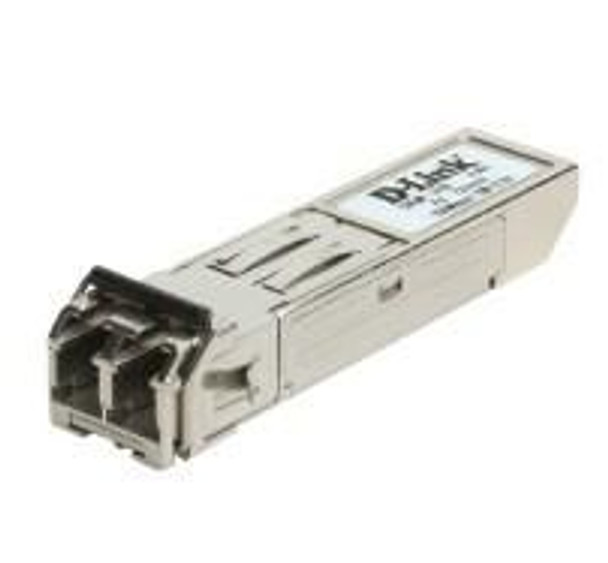

D-link's DEM-210 and DEM-211 SFP transceivers provide a high performance solution for Dserial optical data communication applications. They are hot-swappable, Small Form Factor Pluggable (SFP) compliant with the Multi-Source Agreement (MSA) specification. The transceivers have duplex LC connectors and provide IEEE 802.3u compliant link for up to 100Mbps in the half duplex mode (or 200Mbps full-duplex mode) transmission for fiber cable applications.

D-Link's highly integrated transceivers offer low jitter performance for extended optical links support without performance degradation. This high performance enables reliable data transfer in short-, intermediate- and long-distances for building, factory, campus and metropolitan networking applications.

Design



Certification



RoHS


Compliance industry standards



IEEE 802.3u, IEEE 802.3x


Safety



FDA/CDRH, TUV, UL


Features



Certification



RoHS


Form factor



Plug-in


Safety



FDA/CDRH, TUV, UL


Logistics data



Master (outer) cases per pallet (air)



54 pc(s)


Master (outer) cases per pallet (sea)



54 pc(s)


Pallet gross length



102 cm


Pallet gross weight (air)



246.8 kg


Pallet gross weight (sea)



246.8 kg


Pallet gross width



122 cm


Pallet height (air)



199 cm


Pallet height (sea)



199 cm


Products per pallet (air)



2700 pc(s)


Products per pallet (sea)



2700 pc(s)


Products per shipping (inner) case



50 pc(s)


Shipping (inner) case gross weight



4.2 kg


Shipping (inner) case gross weight



4.2 kg


Shipping (inner) case height



31 cm


Shipping (inner) case length



36 cm


Shipping (inner) case net weight



3.2 kg


Shipping (inner) case width



26 cm


Network



Cabling technology



100Base-FX


Maximum data transfer rate



100 Mbit/s


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 70 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-40 - 85 �C


Other features



Connector(s)



LC


Electromagnetic emissions



FCC Class B, CE, ICES-003, VCCI


Fiber type



62.5/125 �m


Form factor



Plug-in


Power budget



13 dB


Power requirements



3.3V


Package dimensions



Depth (package,cm)



14.9 cm


Gross Weight (Package, kg)



0.07 kg


Height (package,cm)



5 cm


Width (package,cm)



10.6 cm


Performance



Cabling technology



100Base-FX


Harmonized System (HS) code



85369010


Maximum data transfer rate



100 Mbit/s


Maximum transfer distance



2000 m


Product dimensions



Net Weight (Product, kg)



0.065 kg


Technical details



Master (outer) cases per pallet (air)



54 pc(s)


Master (outer) cases per pallet (sea)



54 pc(s)


Pallet gross length



102 cm


Pallet gross weight (air)



246.8 kg


Pallet gross weight (sea)



246.8 kg


Pallet gross width



122 cm


Pallet height (air)



199 cm


Pallet height (sea)



199 cm


Products per pallet (air)



2700 pc(s)


Products per pallet (sea)



2700 pc(s)


Products per shipping (inner) case



50 pc(s)


Shipping (inner) case gross weight



4.2 kg


Shipping (inner) case height



31 cm


Shipping (inner) case length



36 cm


Shipping (inner) case net weight



3.2 kg


Shipping (inner) case width



26 cm


Vendor information



Brand Name


D-Link


Warranty



2 Year(s)
