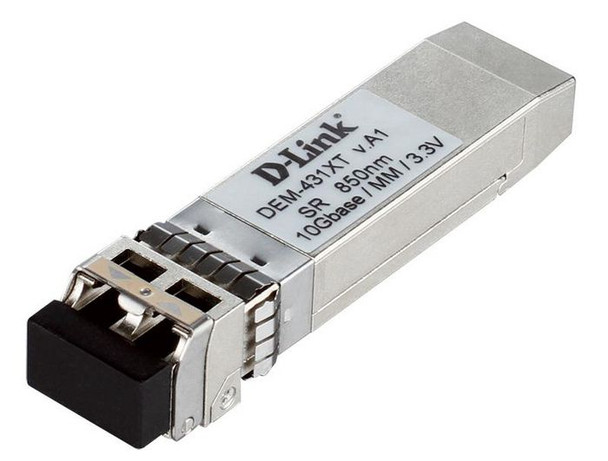

D-Link DEM-431XT 10GBASE SFP+ transceivers DEM-431XT

Features



Certification



CE, FCC, VCCI, C-Tick


RoHS compliance



Yes


Safety



UL, TUV, CDRH


Logistics data



Harmonized System (HS) code



85369010


Master (outer) cases per pallet (air)



60 pc(s)


Master (outer) cases per pallet (sea)



60 pc(s)


Pallet gross length



102 cm


Pallet gross weight (air)



272 kg


Pallet gross weight (sea)



272 kg


Pallet gross width



122 cm


Pallet height (air)



199 cm


Pallet height (sea)



199 cm


Products per pallet (air)



3000 pc(s)


Products per pallet (sea)



3000 pc(s)


Products per shipping (inner) case



50 pc(s)


Shipping (inner) case gross weight



4.2 kg


Shipping (inner) case gross weight



4.2 kg


Shipping (inner) case height



31 cm


Shipping (inner) case length



36 cm


Shipping (inner) case net weight



3.2 kg


Shipping (inner) case width



26 cm


Operational conditions



Operating relative humidity (H-H)



5 - 85 %


Operating temperature (T-T)



0 - 70 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 85 �C


Package dimensions



Depth (package,cm)



13.2 cm


Gross Weight (Package, kg)



0.059 kg


Height (package,cm)



5.2 cm


Width (package,cm)



7.7 cm


Performance



Fiber cable diameters supported (core/cladding)



50/125, 62.5/125


Fiber optic connector



LC


Harmonized System (HS) code



85369010


Interface type



SFP+


Maximum data transfer rate



10000 Mbit/s


Maximum transfer distance



300 m


Multi-mode fiber (MMF) supported



Yes


Networking standards



IEEE 802.3ae


Rx power (max)



-1 dBmW


Rx power (min)



-11.1 dBmW


SFP transceiver type



Fiber optic


Tx power (max)



-1 dBmW


Tx power (min)



-6.5 dBmW


Wavelength



850 nm


Power



Maximum current



300 A


Maximum voltage



3.3 V


Product dimensions



Net Weight (Product, kg)



0.02 kg


Product Depth



1.19 cm


Product Height



5.65 cm


Product Width



1.48 cm


Technical details



Master (outer) cases per pallet (air)



60 pc(s)


Master (outer) cases per pallet (sea)



60 pc(s)


Pallet gross length



102 cm


Pallet gross weight (air)



272 kg


Pallet gross weight (sea)



272 kg


Pallet gross width



122 cm


Pallet height (air)



199 cm


Pallet height (sea)



199 cm


Products per pallet (air)



3000 pc(s)


Products per pallet (sea)



3000 pc(s)


Products per shipping (inner) case



50 pc(s)


Shipping (inner) case gross weight



4.2 kg


Shipping (inner) case height



31 cm


Shipping (inner) case length



36 cm


Shipping (inner) case net weight



3.2 kg


Shipping (inner) case width



26 cm


Sustainability certificates



RoHS


Vendor information



Brand Name


D-Link


Warranty



2 Year(s)
