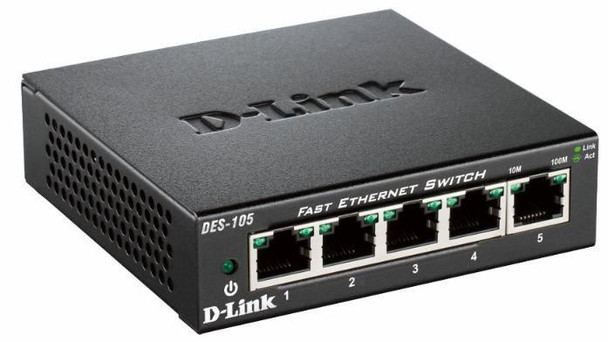

D-Link DES-105/E 5-port 10/100 Metal Housing DES-105/E

- Plug and Play operation
- 5 Fast Ethernet ports
- Non-blocking architecture: simultaneous full speed on all ports
- Fanless, silent operation to fit in any environment
- Quality of Service (QoS) queues for traffic prioritisation
- Solidly built with metal housing
- D-Link Green� technology, saves energy and increases the product�s lifespan

D-Link�s DES-105 Fast Ethernet switch provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. This switch comes with 5 Fast Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Its fanless design makes this switch completely silent, ideal for offices, libraries or meeting rooms.

Robust design

The DES-105 are designed with durability and performance in mind. The sturdy metal housing will protect the switch against accidental harm, while helping to dissipate heat and to reduce stress on internal components. The visible LEDs allow for an easy reading of each port status, helping to troubleshoot connectivity problems. For a convenient placement, this switch comes with a wall mounting kit and a slot for a Kensington security lock to protect it from theft.

QoS (Quality of Service)

Despite being an unmanaged, Plug and Play switch, the DES-105 is able to classify network traffic by assessing the 802.1p field in the Ethernet frames, and forward them out of its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality.

Power-saving technology

The DES-105 is part of D-Link Green�, D-Link�s eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. This switch implement the 802.3az Energy Efficient Ethernet (EEE) standard, which can save a substantial amount of energy by detecting the port status, putting them in low-power, stand-by mode when no network traffic is detected. This helps businesses to save money by reducing their electricity bills with no compromise on performance.

Data transmission



Jumbo frames support



Yes


MAC address table



2000 entries


Maximum data transfer rate



0.1 Gbit/s


Packet buffer memory



0.384 MB


Store-and-forward



Yes


Supported data transfer rates



10/100 Mbps


Switching capacity



1 Gbit/s


Design



Certification



RoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB


Housing material



Metal


LED indicators



Link, Power


Product colour



Black


Rack mounting



No


Logistics data



Harmonized System (HS) code



85176990


Management features



Quality of Service (QoS) support



Yes


Switch layer



L2


Switch type



Unmanaged


Network



10G support



No


Auto MDI/MDI-X



Yes


Copper ethernet cabling technology



100BASE-TX, 10BASE-T


Flow control support



Yes


Full duplex



Yes


Networking standards



IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-10 - 70 �C


Other features



Connectivity technology



Wired


Data transfer rate



200 Mbit/s


Dimensions (WxDxH)



100 x 98 x 28 mm


Input voltage



5 V


Package dimensions



Depth (package,cm)



22 cm


Gross Weight (Package, kg)



0.47 kg


Height (package,cm)



6.1 cm


Width (package,cm)



17 cm


Performance



Harmonized System (HS) code



85176990


Mean time between failures (MTBF)



495709 Hour


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



5


Power connector



DC-in jack


Power



Input current



1 A


Input voltage



5 V


Power consumption (typical)



1.9 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



0.0895 kg


Security



MAC address filtering



Yes


Technical details



Master (outer) cases per pallet (air)



75 pc(s)


Master (outer) cases per pallet (sea)



75 pc(s)


Pallet gross length



120 cm


Pallet gross weight (air)



434 kg


Pallet gross weight (sea)



434 kg


Pallet gross width



110 cm


Pallet height (air)



204 cm


Pallet height (sea)



204 cm


Products per pallet (air)



750 pc(s)


Products per pallet (sea)



750 pc(s)


Products per shipping (inner) case



10 pc(s)


Shipping (inner) case gross weight



5.5 kg


Shipping (inner) case gross weight



5.5 kg


Shipping (inner) case height



36.6 cm


Shipping (inner) case length



33.5 cm


Shipping (inner) case net weight



4.5 kg


Shipping (inner) case width



23 cm


Vendor information



Brand Name


D-Link


Warranty



2 Year(s)
