D-Link
D-Link DGS-1008MP 8-Port Desktop Gigabit PoE+ DGS-1008MP
(No reviews yet)
Write a Review
- UPC:
- 0790069420337
- MPN:
- DGS-1008MP
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Something of a powerhouse when it comes to Power-over-Ethernet switches, this compact beauty offers PoE to 802.3af/at standard across all eight Gigabit Ethernet ports, at up to 30 Watts per port with a power budget total of 140 Watts. Which, put simply, means you can power devices such as access points, IP phones and video surveillance cameras simply by plugging them in with an Ethernet cable � no additional power required.
The DGS-1008MP features 8 x 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ protocol. Each of the 8 PoE+ ports can supply up to 30 watts with a total PoE power budget of 140 watts. PoE is especially suitable for devices that are far from power outlets or when you want to minimise the clutter of extra cables.
No configuration is required and installation is quick and easy. Support for Auto MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch. Auto- Negotiation on each port senses the link speed of a network device (10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. The switch has been designed without fans ensuring silent operation wherever it is installed. With wire-speed filtering and store-and-forward switching, the DGS-1008MP maximises network performance while minimising the transmission of bad network packets.
DGS-1008MP switches feature both D-Link Green 3.0 Technology and IEEE802.3az Energy Efficient Ethernet (EEE) to cut operating costs without sacrificing operational performance or functionality. With D-Link Green technology, the switches constantly monitor the link status and network utilisation of every port. The switches also automatically detect cable length and can reduce transmission power usage for shorter cables. By pairing EEE capable devices with DGS-1008MP switches organizations can drastically reduce power consumption by automatically putting ports into a sleep mode when not being used.
Data transmission
MAC address table
8000 entries
Packet buffer memory
0.192 MB
Packet forwarding rate (1 Gbps)
14880 pps
Packet forwarding rate (10 Mbps)
1488000 pps
Packet forwarding rate (100 Mbps)
148800 pps
Store-and-forward
Yes
Switching capacity
16 Gbit/s
Design
Form factor
1U
LED indicators
Y, Yes
Product colour
Black
Rack mounting
Yes
Logistics data
Harmonized System (HS) code
85176990
Management features
Switch type
Unmanaged
Network
Auto MDI/MDI-X
Yes
Full duplex
Yes
Networking standards
IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Operational conditions
Operating relative humidity (H-H)
0 - 95 %
Operating temperature (T-T)
0 - 40 �C
Storage relative humidity (H-H)
5 - 95 %
Storage temperature (T-T)
-10 - 70 �C
Package dimensions
Depth (package,cm)
40.3 cm
Gross Weight (Package, kg)
2.93 kg
Height (package,cm)
10.5 cm
Width (package,cm)
26.2 cm
Performance
Harmonized System (HS) code
85176990
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (typical)
13.5 Watt
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
140 Watt
Product dimensions
Net Weight (Product, kg)
1.65 kg
Product Depth
18 cm
Product Height
4.4 cm
Product Width
28 cm
Technical details
Master (outer) cases per pallet (air)
36 pc(s)
Master (outer) cases per pallet (sea)
36 pc(s)
Pallet gross length
110 cm
Pallet gross weight (air)
563.8 kg
Pallet gross weight (sea)
563.8 kg
Pallet gross width
120 cm
Pallet height (air)
193.5 cm
Pallet height (sea)
193.5 cm
Products per pallet (air)
180 pc(s)
Products per pallet (sea)
180 pc(s)
Products per shipping (inner) case
5 pc(s)
Shipping (inner) case gross weight
15.3 kg
Shipping (inner) case gross weight
15.3 kg
Shipping (inner) case height
28.5 cm
Shipping (inner) case length
54.5 cm
Shipping (inner) case net weight
14.25 kg
Shipping (inner) case width
40.6 cm
Vendor information
Brand Name
D-Link
Warranty
2 Year(s)
View AllClose
The DGS-1008MP features 8 x 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ protocol. Each of the 8 PoE+ ports can supply up to 30 watts with a total PoE power budget of 140 watts. PoE is especially suitable for devices that are far from power outlets or when you want to minimise the clutter of extra cables.
No configuration is required and installation is quick and easy. Support for Auto MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch. Auto- Negotiation on each port senses the link speed of a network device (10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. The switch has been designed without fans ensuring silent operation wherever it is installed. With wire-speed filtering and store-and-forward switching, the DGS-1008MP maximises network performance while minimising the transmission of bad network packets.
DGS-1008MP switches feature both D-Link Green 3.0 Technology and IEEE802.3az Energy Efficient Ethernet (EEE) to cut operating costs without sacrificing operational performance or functionality. With D-Link Green technology, the switches constantly monitor the link status and network utilisation of every port. The switches also automatically detect cable length and can reduce transmission power usage for shorter cables. By pairing EEE capable devices with DGS-1008MP switches organizations can drastically reduce power consumption by automatically putting ports into a sleep mode when not being used.
Data transmission
MAC address table
8000 entries
Packet buffer memory
0.192 MB
Packet forwarding rate (1 Gbps)
14880 pps
Packet forwarding rate (10 Mbps)
1488000 pps
Packet forwarding rate (100 Mbps)
148800 pps
Store-and-forward
Yes
Switching capacity
16 Gbit/s
Design
Form factor
1U
LED indicators
Y, Yes
Product colour
Black
Rack mounting
Yes
Logistics data
Harmonized System (HS) code
85176990
Management features
Switch type
Unmanaged
Network
Auto MDI/MDI-X
Yes
Full duplex
Yes
Networking standards
IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Operational conditions
Operating relative humidity (H-H)
0 - 95 %
Operating temperature (T-T)
0 - 40 �C
Storage relative humidity (H-H)
5 - 95 %
Storage temperature (T-T)
-10 - 70 �C
Package dimensions
Depth (package,cm)
40.3 cm
Gross Weight (Package, kg)
2.93 kg
Height (package,cm)
10.5 cm
Width (package,cm)
26.2 cm
Performance
Harmonized System (HS) code
85176990
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (typical)
13.5 Watt
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
140 Watt
Product dimensions
Net Weight (Product, kg)
1.65 kg
Product Depth
18 cm
Product Height
4.4 cm
Product Width
28 cm
Technical details
Master (outer) cases per pallet (air)
36 pc(s)
Master (outer) cases per pallet (sea)
36 pc(s)
Pallet gross length
110 cm
Pallet gross weight (air)
563.8 kg
Pallet gross weight (sea)
563.8 kg
Pallet gross width
120 cm
Pallet height (air)
193.5 cm
Pallet height (sea)
193.5 cm
Products per pallet (air)
180 pc(s)
Products per pallet (sea)
180 pc(s)
Products per shipping (inner) case
5 pc(s)
Shipping (inner) case gross weight
15.3 kg
Shipping (inner) case gross weight
15.3 kg
Shipping (inner) case height
28.5 cm
Shipping (inner) case length
54.5 cm
Shipping (inner) case net weight
14.25 kg
Shipping (inner) case width
40.6 cm
Vendor information
Brand Name
D-Link
Warranty
2 Year(s)
Additional Information
Shipping: |
Available to Order - Call for ETA |
Delivery: |
Available to Order - Call for ETA |
Related Products
D-Link DGS-1005P/E 5-Port Desktop Gigabit PoE+ DGS-1005P/E
D-Link
£68.98
Fast. Compact. Convenient.
The D?Link DGS?1005P 5?Port Desktop Gigabit PoE+ Switch enables you to connect Power over Ethernet (PoE) devices such as wireless access points (APs), network video cameras...
D-Link DGS-1100-08PV2 8-Port PoE Gigabit Smart DGS-1100-08PV2
D-Link
£121.83
8-Port PoE Gigabit Smart Managed Switch

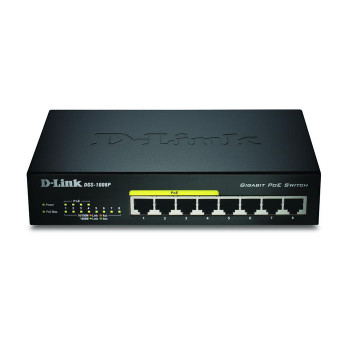

D-Link DGS-1008P/E 8-Port Gigabit Ethernet PoE DGS-1008P/E
