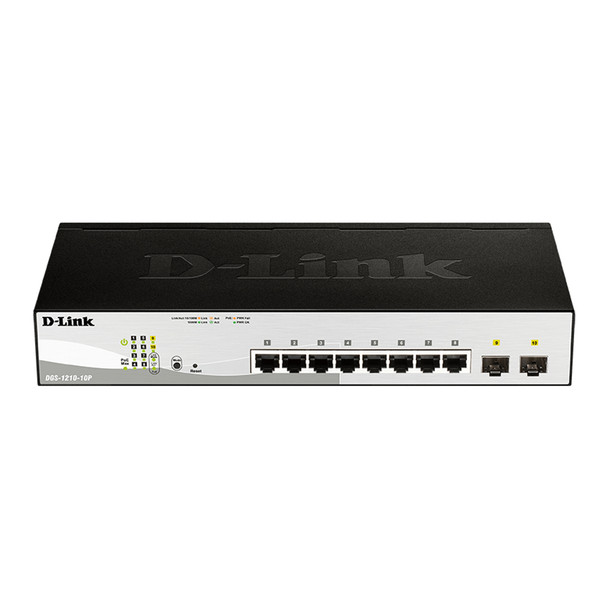

D-Link DGS-1210-10P 10-Port Web Smart Switch with PoE DGS-1210-10P

Smart Managed with a Plus
With increased PoE output, advanced Layer 2 management features, and Layer 3 static routing , D?Link's DGS?1210 Smart+ Managed Gigabit Switches provide a cost?efficient and flexible solution for expanding any business network.

Advanced Layer 2 Management with Layer 3 Static Routing
The DGS-1210 Smart+ family has advanced network management options, accessible via Compact CLI or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, dual software images, and dual configuration files.

With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1210 Smart+ family is a versatile solution for access-edge network environments.

Fibre Uplinks
Use fibre uplinks to connect across longer distances, like factory lines and university campuses, using lightweight, secure, and energy?efficient fibre optic cabling that's immune to interference and which has access to higher throughput to protect the future demands of your business network.

PoE and PoE+, with budgets up to 370W
The DGS-1210 Smart+ Series includes a range of high power budget PoE-enabled switches for business looking to power larger deployments of VoIP phones, wireless access points or network cameras.

Free Network Design and Management Software
D-Link's free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.

Smart Energy?Saving Design
D-Link Green technology enables the DGS-1210 Smart+ series to save power without any sacrifices. The majority of the family utilises a fanless design, otherwise they feature a smart fan that powers on above a certain temperature. All come with advanced silicon technology which saves up to 73% of energy compared to a normal switch.

Surveillance Mode
Select Surveillance Mode in the Web UI to take advantage of easy?to?use surveillance features which enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.

Features


Layer 2 management and security with Layer 3 capabilities


Compact Command-Line Interface (CLI) and web-based User-Interface


Static Routing and MSTP


PoE options up to 370W power budget


Dual image & config



Data transmission


Packet buffer memory

0.512 MB


Forwarding rate

14.88 Mpps


MAC address table

8000 entries


Store-and-forward

Yes


Switching capacity

20 Gbit/s



Power over Ethernet (PoE)


Power over Ethernet plus (PoE+) ports quantity

2


Total Power over Ethernet (PoE) budget

78 W


Power over Ethernet (PoE)

Yes


Power over Ethernet (PoE) ports quantity

8



Ports & interfaces


Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)


Basic switching RJ-45 Ethernet ports quantity

8


Power connector

DC-in jack


SFP module slots quantity

2


Gigabit Ethernet (copper) ports quantity

8



Security


Access Control List (ACL)

Yes


MAC address filtering

Yes



Management features


Web-based management

Yes


Switch layer

L2


Quality of Service (QoS) support

Yes


Switch type

Managed



Multicast features


Multicast support

Yes



Design


Stackable

Yes


Product colour

Black


Rack mounting

Yes


Form factor

1U


Certification

EMI: CE Class A, VCCI Class A, FCC Class A, BSMI, CCC


LED indicators

Yes



Weight & dimensions


Height

44 mm


Width

280 mm


Depth

126 mm


Weight

950 g



Logistics data


Harmonized System (HS) code

85176990



Technical details


Pallet height (sea)

2.04 m


Products per pallet (air)

180 pc(s)


Pallet gross weight (sea)

662 kg


Products per shipping (inner) case

5 pc(s)


Master (outer) cases per pallet (sea)

54 pc(s)


Pallet height (air)

140.3 cm


Pallet gross length

110 cm


Products per pallet (sea)

270 pc(s)


Shipping (inner) case length

38.2 cm


Master (outer) cases per pallet (air)

36 pc(s)


Pallet gross weight (air)

449.5 kg


Shipping (inner) case width

34.6 cm


Shipping (inner) case height

31.7 cm


Pallet gross width

120 cm


Shipping (inner) case gross weight

11.8 kg


Shipping (inner) case net weight

11.1 kg



Network


Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x


Cable types supported

Cat5, Cat5e


Flow control support

Yes


Copper ethernet cabling technology

10BASE-T, 100BASE-T, 1000BASE-T


Link aggregation

Yes


10G support

No


Full duplex

Yes


Auto MDI/MDI-X

Yes


Port mirroring

Yes



Operational conditions


Operating temperature (T-T)

-5 - 50 �C


Heat dissipation

373.96 BTU/h


Operating relative humidity (H-H)

0 - 95


Storage relative humidity (H-H)

0 - 95


Storage temperature (T-T)

-20 - 70 �C



Performance


Mean time between failures (MTBF)

729258 h



Power


Power consumption (max)

80.6 W



Packaging data


Package height

72 mm


Package depth

331 mm


Package width

288 mm


Package weight

2.21 kg
