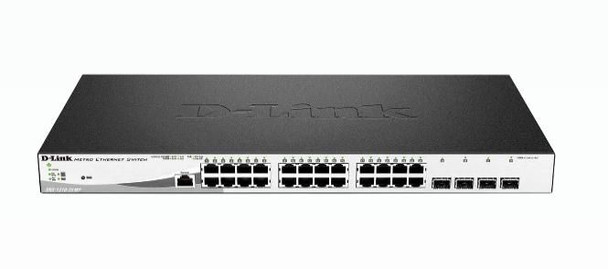

D-Link DGS-1210-28MP/E 28-Port Gigabit PoE+ Smart DGS-1210-28MP/E

28-Port Gigabit PoE+ Smart Switch including 4 SFP Ports
- Power budget 370W
- 24 x PoE+ 10/100/1000Mbps
- 4 x Combo 1000BaseT/SFP Port
- Port 1-24 802.3at up to 30W
- Advance power saving features
- Half-/Full-Duplex, auto-negotiation, Auto MDI/MDIX
- IEEE 802.3x Flow Control
- 802.3ad Link Aggregation
- Asymmetric VLAN
- Voice VLAN
- Jumbo frame 9,216 Bytes
- Switching capacity 56 Gbps
- 802.1p priority queues.
- MAC Address table size 16k
- Static MAC Addresses 256
- Static multicast addresses 64
- MAC/IP filtering
- MAC/IP-based ACL 200 rules (Port List)
- 802.1X port-base Access Control, Port Security
- LLDP, LLDP-MED, Smart Binding, Traffic Segmentation
- IPv6 configurations
- D-Link Safeguard Engine
- Smart Console Utility, web based management, compact CLI
- DNA utility
- 19" Rackmount Installation
- IEEE 802.3az EEE

Note: Draft specifications subject to change

Data transmission



Forwarding rate



41.7 Mpps


Jumbo frames



9216


Jumbo frames support



Yes


MAC address table



16000 entries


Number of queues



8


Number of static routes



32


Packet buffer memory



1.5 MB


Store-and-forward



Yes


Switching capacity



56 Gbit/s


Design



Certification



IEC61000-4-5, RoHS


Electromagnetic compatibility



FCC A, CE A, VCCI, C-Tick, BSMI, CCC


Form factor



1U


LED indicators



Activity, Fan fail, Link, Power, Speed


Number of fans



2 fan(s)


Product colour



Black, Grey


Rack mounting



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



MIB support



RFC1213MIB II, RFC1493, RFC1907, RFC1757, 2819, RFC2021, RFC1398, 1643, 1650, 2358, 2665, RFC2674, 4363, RFC 2233, 2863, RFC 2618, RFC 2620, RFC 2925


Quality of Service (QoS) support



Yes


Switch layer



L2


Switch type



Managed


Traffic classification



Yes


Web-based management



Yes


Multicast features



Multicast Listener Discovery (MLD) snooping



MLD v1, MLD v2


Multicast support



Yes


Network



10G support



No


Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Copper ethernet cabling technology



10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T


Flow control support



Yes


Full duplex



Yes


IP routing



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Number of VLANs



4094


Port mirroring



Yes


Rate limiting



Yes


Spanning tree protocol



Yes


Virtual LAN features



MAC address-based VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN


VLAN support



Yes


Operational conditions



Heat dissipation



850.58 BTU/h


Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



-5 - 50 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-40 - 70 �C


Optical fiber



Fiber ethernet cabling technology



1000BASE-X


Package dimensions



Depth (package,cm)



52 cm


Gross Weight (Package, kg)



5.184 kg


Height (package,cm)



9.4 cm


Width (package,cm)



36.2 cm


Performance



Flash memory



32 MB


Internal memory



256 MB


Memory type



DDR3-SDRAM


Noise level



52.4 dB


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



24


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Console port



RJ-45


Fiber optic connector



SFP


SFP module slots quantity



4


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Power consumption (typical)



27.49 Watt


Power source



AC/DC


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) ports quantity



24


Product dimensions



Net Weight (Product, kg)



4.678 kg


Product Depth



21 cm


Product Height



4.4 cm


Product Width



44 cm


Security



Access Control List (ACL)



Yes


Access Control List (ACL) rules



256


Authentication



Guest VLAN, MAC-based authentication, Port-based authentication


BPDU filtering/protection



Yes


DHCP features



DHCP client


IGMP snooping



Yes


IP-MAC-Port binding



Yes


Loop protection



Yes


Security algorithms



802.1x RADIUS, SNMP, SSH


SSH/SSL support



Yes


Vendor information



Brand Name


D-Link
