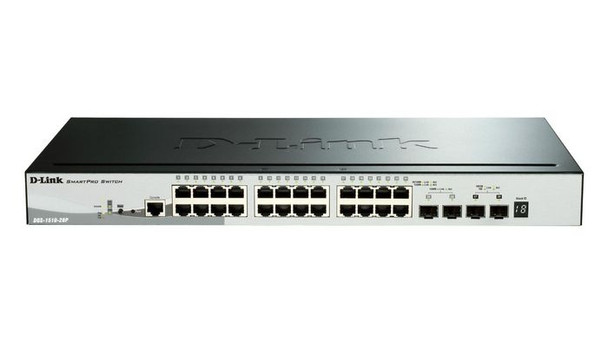

D-Link DGS-1510-28P/E 28-Port Gigabit Stackable DGS-1510-28P/E

28-Port Gigabit Stackable SmartPro PoE Switch including 2 SFP ports and 2 x 10G SFP+ ports
- 24 x 10/100/1000Mbps Auto-Negotiating Ports
- 2 x Mini-GBIC SFP ports
- 2 x 10G SFP+ ports
- Physical Stacking up to 6 units per stack. Stacking Bandwidth of 40Gb. Topology Linear or Ring.
- Support IEEE 802.3af and 802.3at (Support legacy mode)
- Up to 15.4W per port (PoE), Up to 30W per port (PoE+)
- 193W total PoE power budget
- Auto discover the connection of PD and immediately provides power
- AT: Auto disable port if the output power is over 31.2W(+/-2%)
- AF: Auto disable port if the output power is over 16.2W(+/-2%)
- Auto disable port if the port overload detection range (ICUT parameter) is 50V~57V.
- D-Link Green 3.0, 802.3az
- Virtual stacking
- Static route
- IPv6 Management/Ready Logo
- Half-/Full-Duplex, auto-negotiation, Auto MDI/MDIX
- IEEE 802.3x Flow Control
- 802.3ad Link Aggregation
- Asymmetric VLAN, Auto Voice VLAN, GVRP
- 802.1p priority queues
- MAC/IP filtering
- MAC/IP-based ACL
- 802.1X port-base Access Control, Port Security, traffic segmentation
- D-Link Safequare Engine
- Smart Console Utility, web based management, compact CLI
- D-View 6.0 support
- 19" Rackmount Installation

Data transmission



Forwarding rate



68.45 Mpps


Jumbo frames support



Yes


MAC address table



16000 entries


Number of static routes



512


Packet buffer memory



1.5 MB


Store-and-forward



Yes


Switching capacity



92 Gbit/s


Design



Certification



CE, FCC, C-Tick, VCCI, BSMI, CCC


LED indicators



Activity, Link, PoE, Power


Number of fans



2 fan(s)


Product colour



Black


Rack mounting



Yes


Safety



cUL, CB


Stackable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


System event log



Yes


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



10G support



Yes


Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Broadcast storm control



Yes


Cable types supported



Cat5, Cat5e


Flow control support



Yes


Full duplex



Yes


Head-of-line (HOL) blocking



Yes


Link aggregation



Yes


MAC address auto-learning supported



Yes


Networking standards



IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x


Port mirroring



Yes


VLAN support



Yes


Operational conditions



Heat dissipation



813.967 BTU/h


Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



-5 - 50 �C


Storage relative humidity (H-H)



0 - 95 %


Storage temperature (T-T)



-20 - 70 �C


Package dimensions



Depth (package,cm)



51.1 cm


Gross Weight (Package, kg)



3.995 kg


Height (package,cm)



9.1 cm


Width (package,cm)



34.800000000000004 cm


Packaging data



Manual



Yes


Performance



Noise level



46.4 dB


Physical stacking (units)



6


Virtual stacking (units)



32


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



24


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Power connector



DC-in jack


SFP module slots quantity



2


SFP+ module slots quantity



2


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Power consumption (typical)



238.7 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) ports quantity



24


Total Power over Ethernet (PoE) budget



193 Watt


Product dimensions



Net Weight (Product, kg)



3.029 kg


Product Depth



25 cm


Product Height



4.4 cm


Product Width



44 cm


Security



Access Control List (ACL)



Yes


DHCP features



DHCP server, DHCP client


IGMP snooping



Yes


MAC address filtering



Yes


SSH/SSL support



Yes


Static port security



Yes


Technical details



Master (outer) cases per pallet (air)



40 pc(s)


Master (outer) cases per pallet (sea)



40 pc(s)


Pallet gross length



110 cm


Pallet gross weight (air)



533.9 kg


Pallet gross weight (sea)



533.9 kg


Pallet gross width



120 cm


Pallet height (air)



205 cm


Pallet height (sea)



205 cm


Products per pallet (air)



120 pc(s)


Products per pallet (sea)



120 pc(s)


Products per shipping (inner) case



3 pc(s)


Shipping (inner) case gross weight



12.885 kg


Shipping (inner) case height



38.3 cm


Shipping (inner) case length



52.9 cm


Shipping (inner) case net weight



9.27 kg


Shipping (inner) case width



29.6 cm


Vendor information



Brand Name


D-Link
