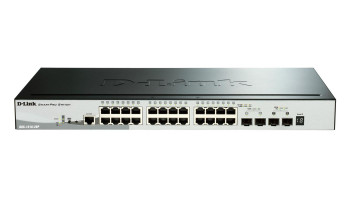

D-Link DGS-1510-28X/E 28-Port Gigabit Stackable DGS-1510-28X/E

28-Port Gigabit Stackable Smart Managed Switch including 4 10G SFP+
- 24 x 10/100/1000Mbps Auto-Negotiating Ports
- 4 x 10G SFP+ ports
- Physical Stacking up to 6 units per stack. Physical Stacking Bandwidth of 40Gb. Topology Linear or Ring.
- Switch Capacity 128Gbps
- D-Link Green 3.0, 802.3az
- Virtual stacking up to 32 devices.
- Static route
- IPv6 Management/Ready Logo
- Half-/Full-Duplex, auto-negotiation, Auto MDI/MDIX
- IEEE 802.3x Flow Control
- 802.3ad Link Aggregation
- Asymmetric VLAN, Auto Voice VLAN, GVRP
- 802.1p priority queues
- MAC/IP filtering
- MAC/IP-based ACL
- 802.1X port-base Access Control, Port Security, traffic segmentation
- D-Link Safequard Engine
- D-Link Network Assist, web based management, compact CLI
- Dual Image FW
- 19" Rackmount Installation

Note: Draft specifications subject to change

Data transmission



Jumbo frames support



Yes


MAC address table



16000 entries


Number of static routes



512


Packet buffer memory



1.5 MB


Store-and-forward



Yes


Switching capacity



92 Gbit/s


Throughput



68.45 Mpps


Design



Certification



CE, FCC, C-Tick, VCCI, BSMI, CCC


LED indicators



Y, Yes


Product colour



Black


Rack mounting



Yes


Safety



cUL, CB


Stackable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


Network



10G support



Yes


Auto MDI/MDI-X



Yes


Full duplex



Yes


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x


Operational conditions



Heat dissipation



72.292 BTU/h


Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



-5 - 50 �C


Storage relative humidity (H-H)



0 - 95 %


Storage temperature (T-T)



-20 - 70 �C


Package dimensions



Depth (package,cm)



51.1 cm


Gross Weight (Package, kg)



3.474 kg


Height (package,cm)



9.1 cm


Width (package,cm)



34.800000000000004 cm


Performance



Noise level



47.5 dB


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



24


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Power connector



DC-in jack


SFP+ module slots quantity



4


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Power consumption (typical)



24 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



2.3046 kg


Product Depth



21 cm


Product Height



4.4 cm


Product Width



44 cm


Security



Access Control List (ACL)



Yes


MAC address filtering



Yes


SSH/SSL support



Yes


Static port security



Yes


Technical details



Master (outer) cases per pallet (air)



40 pc(s)


Master (outer) cases per pallet (sea)



40 pc(s)


Pallet gross length



110 cm


Pallet gross weight (air)



471.38 kg


Pallet gross weight (sea)



471.38 kg


Pallet gross width



120 cm


Pallet height (air)



205 cm


Pallet height (sea)



205 cm


Products per pallet (air)



120 pc(s)


Products per pallet (sea)



120 pc(s)


Products per shipping (inner) case



3 pc(s)


Shipping (inner) case gross weight



11.322 kg


Shipping (inner) case height



38.3 cm


Shipping (inner) case length



52.9 cm


Shipping (inner) case net weight



7.491 kg


Shipping (inner) case width



29.6 cm


Vendor information



Brand Name


D-Link
