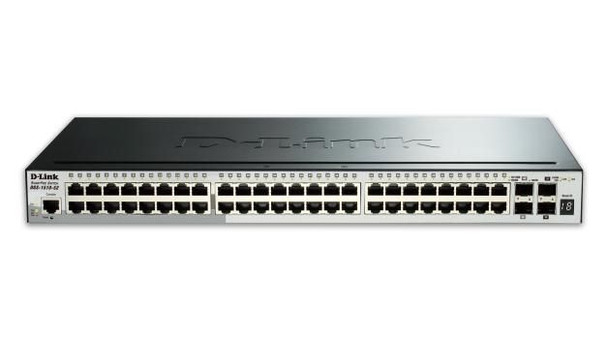

D-Link DGS-1510-52X/E 52-Port Gigabit Stackable DGS-1510-52X/E

52-Port Gigabit Stackable Smart Managed Switch including 4 10G SFP+
- 48 x 10/100/1000Mbps Auto-Negotiating Ports
- 4 x 10G SFP+ ports
- Physical Stacking up to 6 units per stack. Physical Stacking Bandwidth of 40G full duplex. Topology support Duplex Chain/Ring.
- Switch Capacity 176bps
- D-Link Green 3.0, 802.3az
- Virtual Stacking Support up to 32 devices. Up to 20G stacking Bandwidth
- Static route
- IPv6 Management/Ready Logo
- Half-/Full-Duplex, auto-negotiation, Auto MDI/MDIX
- IEEE 802.3x Flow Control
- 802.3ad Link Aggregation
- Asymmetric VLAN, Auto Voice VLAN, GVRP
- 802.1p priority queues
- MAC/IP filtering
- MAC/IP-based ACL
- 802.1X port-base Access Control, Port Security, traffic segmentation
- D-Link Safequard Engine
- D-Link Network Assist, web based management, compact CLI
- 19" Rackmount Installation
- Weight 2.4Kg


Note: Draft specifications subject to change

Data transmission



MAC address table



16000 entries


Packet buffer memory



3 MB


Store-and-forward



Yes


Switching capacity



176 Gbit/s


Throughput



130.95 Mpps


Design



Certification



CE, FCC, C-Tick, VCCI, BSMI, CCC


Form factor



1U


LED indicators



Activity, Link, Power


Number of fans



2 fan(s)


Product colour



Black


Rack mounting



Yes


Safety



cUL, CB


Stackable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



10G support



Yes


Auto MDI/MDI-X



Yes


Broadcast storm control



Yes


Flow control support



Yes


Full duplex



Yes


Head-of-line (HOL) blocking



Yes


Link aggregation



Yes


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x


Port mirroring



Yes


VLAN support



Yes


Operational conditions



Heat dissipation



138.8 BTU/h


Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



-5 - 50 �C


Storage relative humidity (H-H)



0 - 95 %


Storage temperature (T-T)



-20 - 70 �C


Package dimensions



Depth (package,cm)



55.5 cm


Gross Weight (Package, kg)



3.6067 kg


Height (package,cm)



10.100000000000001 cm


Width (package,cm)



36.5 cm


Performance



Noise level



45.8 dB


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



48


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Power connector



DC-in jack


SFP+ module slots quantity



4


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Power consumption (max)



44.2 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



2.6518 kg


Product Depth



25 cm


Product Height



4.4 cm


Product Width



44 cm


Security



Access Control List (ACL)



Yes


DHCP features



DHCP server, DHCP client


IGMP snooping



Yes


MAC address filtering



Yes


SSH/SSL support



Yes


Technical details



Master (outer) cases per pallet (air)



24 pc(s)


Master (outer) cases per pallet (sea)



24 pc(s)


Pallet gross length



110 cm


Pallet gross weight (air)



375.1 kg


Pallet gross weight (sea)



375.1 kg


Pallet gross width



120 cm


Pallet height (air)



173 cm


Pallet height (sea)



173 cm


Products per pallet (air)



72 pc(s)


Products per pallet (sea)



72 pc(s)


Products per shipping (inner) case



3 pc(s)


Shipping (inner) case gross weight



14.86 kg


Shipping (inner) case height



39.8 cm


Shipping (inner) case length



57.3 cm


Shipping (inner) case net weight



11.4 kg


Shipping (inner) case width



32.4 cm


Vendor information



Brand Name


D-Link
