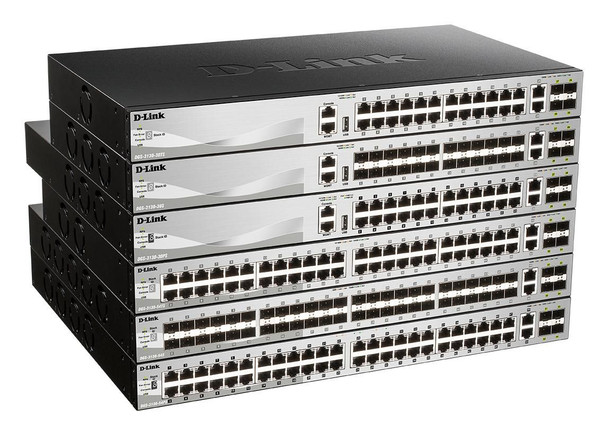

D-Link DGS-3130-30PS/E Managed Gigabit Ethernet DGS-3130-30PS/E

24 x 10/100/1000BASE-T PoE ports (370W budget) Layer 3 Stackable Managed Gigabit Switch with 2 x 10GBASE-T ports and 4 x SFP+ ports
- Managed Gigabit Ethernet Switch
- 24 x 10/100/1000BASE-T PoE ports
- 2 x 10GBASE-T ports
- 4 x 10G SFP+ ports
- PoE Budget: 370W or (740W w/ DPS-700 RPS)
- PoE standard: 802.3af/802.3at
- 4 Stacking ports, stacking cost 1
- 80Gbps stacking (up to 9 units/stack)
- Optional redundant power supply (RPS) support (DPS-700A)
- Ethernet Ring Protection Switching (ERPS) for single ring topologies
- IEEE 802.1D/1w/1s Spanning Tree Protocol, 802.3ad Link Aggregation
- Loopback Detection (LBD), Port Mirroring
- Max. 16 IP interfaces ARP Proxy, VRRP
- L3 Routing: Static Route, RIPv1/v2/ng
- Double VLAN Q-in-Q
- IGMP/MLD Snooping
- 802.1p, Bandwidth Control
- 802.1Q, Voice VLAN, Asymmetric VLAN, GVRP, Port/MAC-based VLAN, Super VLAN
- SSH v2, Traffic Segmentation, ARP Spoofing Prevention, DHCP Server Screening, BPDU Attack Protection, Port Security, IP-MAC-Port Binding
- Port/Host Based 802.1X, Identity-driven security policy assignment, Port/Host Based WAC/MAC, Microsoft NAP Support
- Web-based GUI, Command Line Interface (CLI), SNMP
- RMON v1/v2, DHCP Auto-configuration, Flash file system, LLDP, DHCP Relay, Multiple images/configuration
- ACL, Time-based ACL
- Embedded 6 kV surge protection on all Gigabit Ethernet ports

Note: Draft specifications subject to change

Data transmission



Forwarding rate



125 Mpps


Jumbo frames support



Yes


MAC address table



16384 entries


Number of queues



8


Packet buffer memory



2 MB


Switching capacity



168 Gbit/s


Design



Certification



FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI


LED indicators



Y, Yes


Number of fans



3 fan(s)


Product colour



Grey


Rack mounting



Yes


Stackable



Yes


Management features



ARP inspection



Yes


Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


System event log



Yes


Web-based management



Yes


Multicast features



Multicast features



Controllable multicast


Multicast support



Yes


Network



10G support



Yes


Broadcast storm control



Yes


Copper ethernet cabling technology



10BASE-T, 100BASE-T, 1000BASE-T


Flow control support



Yes


Head-of-line (HOL) blocking



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x


Number of VLANs



4000


Port mirroring



Yes


Spanning tree protocol



Yes


Virtual LAN features



MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN


VLAN support



Yes


Operational conditions



Heat dissipation



1550.92 BTU/h


Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Depth (package,cm)



59.5 cm


Gross Weight (Package, kg)



6.504 kg


Height (package,cm)



11.8 cm


Width (package,cm)



45 cm


Performance



Mean time between failures (MTBF)



279418 Hour


Noise level



53.4 dB


Physical stacking (units)



9


Virtual stacking (units)



32


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



24


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Fiber optic connector



SFP+


Power connector



AC-in jack


SFP+ module slots quantity



4


USB 2.0 ports quantity



1


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Power consumption (max)



454.55 Watt


Power consumption (typical)



38.74 Watt


Power source



DC


Redundant power supply (RPS) support



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet plus (PoE+) ports quantity



24


Total Power over Ethernet (PoE) budget



370 Watt


Product dimensions



Net Weight (Product, kg)



5.225 kg


Product Depth



43 cm


Product Height



4.4 cm


Product Width



44 cm


Protocols



GARP VLAN Registration Protocol (GVRP)



Yes


Routing protocols



RIP


Security



Access Control List (ACL)



Yes


Access Control List (ACL) egress



512


Access Control List (ACL) ingress



2048


Authentication



Auto VLAN, MAC-based authentication, Port-based authentication


BPDU filtering/protection



Yes


DHCP features



DHCP client, DHCP relay, DHCP server, DHCP snooping


IGMP snooping



Yes


Loop protection



Yes


Password protection



Yes


Queue scheduling algorithms



Deficit weighted round robin (DWRR), SP, WRR+SP, Weighted Round Robin (WRR)


Security algorithms



SNMP, SNMPv3, SSH-2, SSL/TLS


SSH/SSL support



Yes


Vendor information



Brand Name


D-Link


Warranty



5 Year(s)
