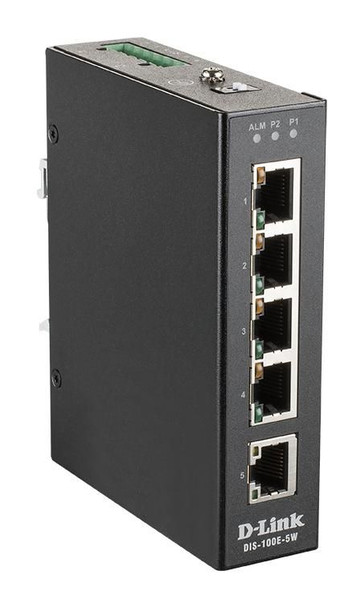

D-Link DIS-100E-5W 5 Port Unmanaged Switch with DIS-100E-5W

Unmanaged Plug and Play
Plug in and go. The DIS-100E-5W reliably forwards Ethernet frames.

Fast Ethernet Connectivity
Designed with 5 x 10/100BaseT(X) Fast Ethernet ports to suit your network layout.

Officially Certified
Certifications for vibration, shock, free-fall and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.

Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40�C to +75�C, and can cold start from -40�C.

Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That�s why every DIS-switch comes with a 5-year D-Link warranty.

Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.

Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

Data transmission



MAC address table



1000 entries


Store-and-forward



Yes


Design



Certification



UL 60950?1 CE FCC


DIN rail mounting



Yes


International Protection (IP) code



IP30


Product colour



Black


Rack mounting



Yes


Stackable



Yes


Wall mountable



Yes


Management features



Switch layer



L2


Switch type



Unmanaged


Network



10G support



No


Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Broadcast storm control



Yes


Copper ethernet cabling technology



10BASE-T, 100BASE-TX, 100BASE-T


Flow control support



Yes


Full duplex



Yes


Networking standards



IEEE 802.3x


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-40 - 75 �C


Storage temperature (T-T)



-40 - 85 �C


Package dimensions (verified)



Depth Verified



14.1 cm


Gross Weight Verified



0.51 kg


Height Verified



8.5 cm


Width Verified



18 cm


Performance



Harmonized System (HS) code



85176990


Mean time between failures (MTBF)



219000 Hour


Plug and Play



Yes


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



5


Basic switching RJ-45 Ethernet ports type



Fast Ethernet (10/100)


Relay outputs



1


Power



DC input voltage



12 - 58 V


Power consumption (max)



1.56 Watt


Power consumption (typical)



0.95 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



0.49 kg


Product Depth



8.94 cm


Product Height



10.92 cm


Product Width



2.91 cm


Technical details



Master (outer) cases per pallet (air)



36 pc(s)


Master (outer) cases per pallet (sea)



54 pc(s)


Pallet gross length



120 cm


Pallet gross weight (air)



226.44 kg


Pallet gross weight (sea)



330.66 kg


Pallet gross width



110 cm


Pallet height (air)



135 cm


Pallet height (sea)



195 cm


Products per pallet (air)



360 pc(s)


Products per pallet (sea)



540 pc(s)


Products per shipping (inner) case



10 pc(s)


Shipping (inner) case gross weight



5.79 kg


Shipping (inner) case gross weight



5.79 kg


Shipping (inner) case height



20 cm


Shipping (inner) case length



43 cm


Shipping (inner) case net weight



5.78 kg


Shipping (inner) case width



30.5 cm


Vendor information



Brand Name


D-Link


Warranty



5 Year(s)
