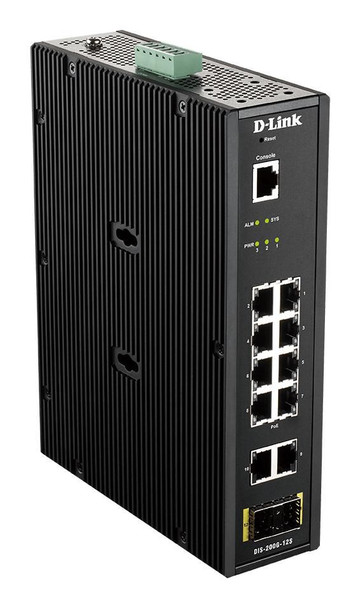

D-Link DIS-200G-12S 12 Port L2 Industrial Smart DIS-200G-12S

The DIS-200G-12S Layer 2 Industrial Managed Switch is equipped with 10 10/100/1000BASE-T ports and 2 SFP ports. This switch features a robust design making it ideal for deployment in industrial and outdoor surveillance settings, capable of withstanding the harshest environments. The DIS-200G-12S furthermore integrates advanced management and security functions to provide a complete solution.

Durable and Reliable Design

The DIS-200G-12S switch is housed in a highly resistant IP30-rated metal casing to protect the switch from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects DIS-200G-12S from unwanted effects when operating in environments with strong electromagnetic interference. Meanwhile, the fanless design extends the life of DIS-200G-12S while also being able to operate in a wider temperature range of up to 65 �C. For increased flexibility, the DIS-200G-12S switch can also be mounted on a DIN rail, wall mounted, or be installed in an equipment rack.

Additionally, the DIS-200G-12S switch features 6 kV surge protection on all copper ports to help prevent damage to the switch and connected devices caused by sudden power surges and lightning strikes. The in-built surge protection of up to 6 kV can mitigate the damage to the switch from both indoor and outdoor devices and network connections by absorbing the excess energy while still letting the amount of power through required for the switch to operate normally. This increases network reliability, reduces repair costs, and removes the need for replacement hardware in the event of an electrical surge or lightning strike.

High Redundancy and Reliability

The DIS-200G-12S switch supports ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings. Meanwhile, the dual power input allows for a redundant power supply to make sure the network continues to operate in the event of a primary power supply failure.

Surveillance Traffic Optimization

The DIS-200G-12S switch supports the Auto Surveillance VLAN feature. This automatically detects surveillance devices and puts them into a dedicated surveillance VLAN, segmenting their traffic from the rest of the network. This provides increased security of surveillance data, and gives the traffic a higher priority through the switch, reducing the chances of the video freezing or being delayed on live streams. A single switch can be used for both surveillance and data networks, removing the need for dedicated surveillance hardware while simultaneously reducing maintenance costs.

Easy Troubleshooting

The DIS-200G-12S switch features loopback detection and cable diagnostics to help network administrators find and solve network problems quickly and easily. Loopback detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.

Data transmission



Forwarding rate



17.85 Mpps


Jumbo frames



9216


Jumbo frames support



Yes


MAC address table



8000 entries


Store-and-forward



Yes


Switching capacity



24 Gbit/s


Design



Certification



CE, FCC, BSMI EN 61000-4-2 ESD EN 61000-4-3 RS EN 61000-4-4 EFT EN 61000-4-5 EN 61000-4-6 CS EN 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6


DIN rail mounting



Yes


Electromagnetic compatibility



CISPR 22, FCC Part 15B Class A


Housing material



Metal


International Protection (IP) code



IP30


LED indicators



Y, Yes


Product colour



Black


Rack mounting



Yes


Safety



UL60950-1


Wall mountable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Configuring Location Settings (CLI)



Yes


Quality of Service (QoS) support



Yes


Switch layer



L2


Switch type



Managed


System event log



Yes


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



10G support



No


Active link detection



Yes


Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Broadcast storm control



Yes


Copper ethernet cabling technology



10BASE-T, 100BASE-TX, 1000BASE-T


Flow control support



Yes


Full duplex



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Number of VLANs



4094


Port mirroring



Yes


Spanning tree protocol



Yes


Virtual LAN features



Voice VLAN, Tagged VLAN, Port-based VLAN


VLAN support



Yes


Operational conditions



Heat dissipation



35.01 BTU/h


Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



-40 - 65 �C


Storage relative humidity (H-H)



0 - 95 %


Storage temperature (T-T)



-40 - 85 �C


Optical fiber



Fiber ethernet cabling technology



1000BASE-X


Package dimensions (verified)



Depth Verified



22.7 cm


Gross Weight Verified



2.076 kg


Height Verified



8.2 cm


Width Verified



35.1 cm


Performance



Harmonized System (HS) code



85176990


Mean time between failures (MTBF)



276773 Hour


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



10


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Console port



RJ-45


Gigabit Ethernet (copper) ports quantity



10


Installed SFP modules quantity



2


SFP module slots quantity



2


Power



DC input voltage



12 - 48 V


Power consumption (max)



10.26 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



2.07 kg


Product Depth



4.8 cm


Product Height



21 cm


Product Width



17.12 cm


Protocols



Management protocols



SNMP v1/v2c/v3, SNTP, Telnet


Security



Authentication



Port-based authentication


Authentication type



RADIUS


DHCP features



DHCP client


DoS attack prevention



Yes


IGMP snooping



Yes


Queue scheduling algorithms



SPQ, Weighted Round Robin (WRR)


Security algorithms



802.1x RADIUS, SSL/TLS


Technical details



Master (outer) cases per pallet (air)



24 pc(s)


Master (outer) cases per pallet (sea)



42 pc(s)


Pallet gross length



110 cm


Pallet gross weight (air)



268.8 kg


Pallet gross weight (sea)



470.4 kg


Pallet gross width



120 cm


Pallet height (air)



114.3 cm


Pallet height (sea)



189.9 cm


Products per pallet (air)



120 pc(s)


Products per pallet (sea)



210 pc(s)


Products per shipping (inner) case



5 pc(s)


Shipping (inner) case gross weight



11.2 kg


Shipping (inner) case gross weight



11.2 kg


Shipping (inner) case height



25.2 cm


Shipping (inner) case length



40.9 cm


Shipping (inner) case net weight



10.37 kg


Shipping (inner) case width



37.2 cm


Vendor information



Brand Name


D-Link


Warranty



5 Year(s)
