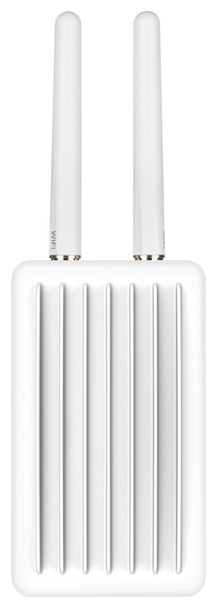

D-Link DIS-3650AP Outdoor Industrial AC1200 DIS-3650AP

Outdoor Industrial AC1200 Access Point
- One Gigabit Ethernet port and one console port
- Support 802.3at PoE
- Metal housing
- External N type Omni-directional antennas
- Operation Temp: -20 to 65 degree
- Support 6KV Surge Protection
- Multiple Operation Modes(Standalone)
- Supported by Nuclias Connect SW(DNC-100), Nuclias Connect app & DNH-100

Antenna



Antenna gain level (max)



5 dBi


Antenna type



External


Antennas quantity



2


Design



International Protection (IP) code



IP67


LED indicators



Y, Yes


Placement



Pole, Wall


Product colour



White


Features



2.4 GHz



Yes


5 GHz



Yes


6 GHz



No


Cabling technology



10/100/1000Base-T(X)


Ethernet LAN data rates



10, 100, 1000


Fast roaming



Yes


Frequency band



2.4 - 2.5, 5.15 - 5.35, 5.47 - 5.85 GHz


Maximum data transfer rate



867 Mbit/s


Maximum data transfer rate (2.4 GHz)



300 Mbit/s


Maximum data transfer rate (5 GHz)



866 Mbit/s


MIMO



Yes


MIMO type



Multi User MIMO


Networking standards



IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u


Logistics data



Harmonized System (HS) code



85176990


Management features



Web-based management



Yes


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



-20 - 65 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 80 �C


Package dimensions



Gross Weight (Package, kg)



1.08 kg


Ports & interfaces



Ethernet LAN (RJ-45) ports



1


WAN connection



Ethernet (RJ-45)


Power



Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



1.07 kg


Product Depth



7.25 cm


Product Height



22.05 cm


Product Width



12.75 cm


Security



Security algorithms



64-bit WEP, 128-bit WEP, SSID, SSL/TLS, WPA, WPA2, WPA3


Sustainability



Sustainability certificates



CE, Low Voltage Directive (LVD)


Sustainability compliance



Yes


Technical details



Sustainability certificates



CE, Low Voltage Directive (LVD)


Sustainability compliance



Yes


Vendor information



Brand Name


D-Link


Warranty



5 Month(s)
