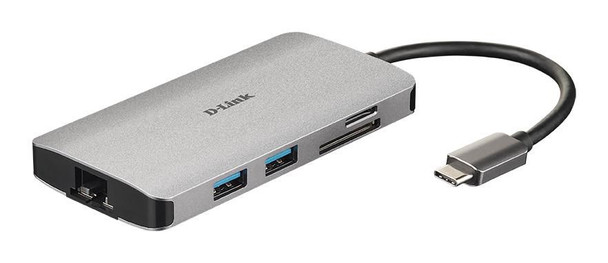

D-Link DUB-M810 DUB-M810 interface hub USB DUB-M810

Use one port. Connect to everything.
Instantly add a second display, a dual?slot SD and microSD card reader, a Gigabit Ethernet port, three USB 3.0 ports with one that can Quick Charge, and a USB?C port to your laptop simply by plugging the hub into any USB?C port.

Plug into a reliable docking station. Unplug for instant remote working.
Enjoy a premium docking station experience simply by plugging the hub into a single USB-C port on your computer. You can directly access a private LAN network with Gigabit Ethernet speeds, extend your monitor to a second screen, transfer files from SD cards and USB 3.0 devices, and charge your laptop, all at the same time. Need to work remotely? Simply unplug the hub�s single cable and you�re ready to go with your laptop.

Ready to transfer your close?ups.
Reliably bulk transfer any files from your SD or microSD card to your computer using the hub�s built-in dual-slot SD/microSD card reader. Perfect for quickly downloading camera photos and video footage to a phone, tablet, or computer without using any of your camera�s battery power.

Extend your screen to a vivid 4K monitor.
Plug into the hub�s HDMI port to instantly mirror or extend your display to a second monitor with vibrant 4K resolution. And full backwards compatibility means you can connect to a 720p or 1080p monitor.

Send power through the hub.
With the Power Delivery feature, you can charge your laptop at the same time as connecting to your USB peripheral devices. Simply connect your USB-C charger to the hub�s USB-C port to provide power through the hub and to your laptop.

Features



Cable length



0.15 m


Certification



CE, IC, FCC, RCM


Data transfer rate



5000 Mbit/s


Product colour



Silver


USB Power Delivery



Yes


USB Power Delivery up to



100 Watt


Network



Ethernet interface type



Gigabit Ethernet


Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x


Operational conditions



Operating relative humidity (H-H)



10 - 85 %


Operating temperature (T-T)



0 - 45 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-10 - 70 �C


Other features



Cable length



0.15 m


Package dimensions



Depth (package,cm)



22 cm


Gross Weight (Package, kg)



0.16 kg


Height (package,cm)



3 cm


Width (package,cm)



13.5 cm


Packaging data



Quantity per pack



1 pc(s)


Performance



Card reader integrated



Yes


Certification



CE, IC, FCC, RCM


Compatible memory cards



MicroSD (TransFlash), SD, SDHC, SDXC


Maximum digital resolution



4096 x 2160 Pixels


Maximum refresh rate



30 Hz


Plug and Play



Yes


Product colour



Silver


Ports & interfaces



Card reader integrated



Yes


Compatible memory cards



SD, SDHC, SDXC


Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



1


HDCP



Yes


HDCP version



2.2


HDMI ports quantity



1


HDMI version



1.4


Host interface



USB 3.2 Gen 1 (3.1 Gen 1) Type-C


Hub interfaces



HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C


Maximum resolution (HDMI)



4096 x 2160 Pixels


Microphone in



No


Ports quantity



8


Thunderbolt 3 ports quantity



1


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



3


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity



1


USB Power Delivery



Yes


USB Power Delivery up to



100 Watt


Power



AC input voltage



20 V


Input current



0.08 A


Input voltage



5 V


Power supply type



USB


Product dimensions



Net Weight (Product, kg)



0.086 kg


Product Depth



5.2 cm


Product Height



1.3 cm


Product Width



10.5 cm


Software



Linux operating systems supported



Y, Yes


Mac operating systems supported



Y, Yes


Other operating systems supported



ChromeOS


Windows operating systems supported



Yes


System requirements



Mac operating systems supported



Y, Yes


Windows operating systems supported



Y, Yes


Technical details



Harmonized System (HS) code



84733020


Vendor information



Brand Name


D-Link


Warranty



2 Year(s)
