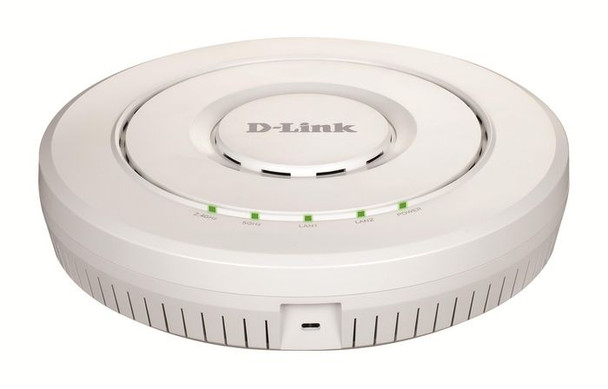

D-Link DWL-X8630AP Wireless AX3600 Unified DWL-X8630AP

Next?Generation Wi?Fi 6.
The AX3600 Wi-Fi 6 Dual-Band Unified Access Point brings the latest Wi-Fi technology to small-to-medium-sized businesses as well as larger enterprises. It�s part of D-Link�s Unified Wireless solution that allows companies to set up a highly scalable, flexible and manageable Wi-Fi network.

Wi-Fi 6
Next-generation 802.11ax Wi-Fi 6 technology provides increased speed, capacity and the latest WPA3 security.

Dual-Band with band steering
Two bands to improve throughput and coverage as well as reduces co-channel interference.

4 x 4 MU-MIMO
Improved efficiency in handling throughput distribution to multiple devices connected to the network.

PoE & flexible installation
Power the device over Ethernet without the need for nearby power outlets with the option for ceiling or wall mounting.

Fast roaming
Allows wireless clients to move freely, jumping from AP to AP without losing connectivity.

Self-healing
Set up a robust and resilient wireless network that can automatically heal itself when an AP fails.

Self-healing
Set up a robust and resilient wireless network that can automatically heal itself when an AP fails.

Take Your Business to the Next Level with Wi?Fi 6
Uses the latest Wi-Fi technology to deliver reliable wireless performance and reduce congestion, with combined maximum wireless signal rates of up to 3.6 Gbps (1147 Mbps on 2.4 GHz band and 2402 Mbps on 5 GHz band)2. Together with OFDMA and MU-MIMO support, the DWL-X8630AP gives your business a faster wireless network with higher capacity and efficiency.

- Band steering
- MU-MIMO
- Airtime Fairness
- 802.11k Fast Roaming

Flexible Installation
Power-over-Ethernet support allows the DWL-X8630AP to be connected and powered using a single cable, so it can be installed in areas without power outlets.

Highly Scalable and Centrally Managed
The DWL-X8630AP can be used as a single access point or as part of a centrally managed wireless network with up to 1,024 access points when deployed with D-Link Unified Wireless Controllers.

Self?Healing and Resilient
When working in conjunction with D-Link Unified Wireless Controllers, you can create a network that automatically heals itself when an access point or controller fails, allowing your business to stay online.

Self?Optimised Network
Automatic radio frequency (RF) management provides the best possible coverage for wireless clients by reducing interference when access points are deployed close to each other. When the DWL-X8630AP senses a neighbouring AP nearby, it will automatically select a non-interfering channel.

This significantly reduces RF interference and allows you to deploy APs more densely. To further minimise interference, when a nearby AP is on the same channel, the DWL-X8630AP will automatically adjust its transmission power.

Antenna



Antenna direction type



Omni-directional


Antenna gain level (max)



4 dBi


Antenna type



Internal


Design



Housing material



Plastic


Product colour



White


Features



2.4 GHz



Yes


5 GHz



Yes


Automatic channel selection



Yes


Band steering



Yes


Channels quantity



165 channels


Ethernet LAN data rates



10, 100, 1000, 2500


Frequency band



2.4 - 5 GHz


Maximum data transfer rate



19216 Mbit/s


Maximum data transfer rate (2.4 GHz)



9176 Mbit/s


Maximum data transfer rate (5 GHz)



19216 Mbit/s


Mean time between failures (MTBF)



485222 Hour


MIMO



Yes


MIMO type



Multi User MIMO


Networking standards



IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at


Quality of Service (QoS) support



Yes


VLAN support



Yes


Wi-Fi Multimedia (WMM)/(WME)



Yes


Management features



Command-line interface (CLI)



Yes


Web-based management



Yes


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-20 - 65 �C


Package dimensions



Depth (package,cm)



29.5 cm


Gross Weight (Package, kg)



1.49 kg


Height (package,cm)



9.5 cm


Width (package,cm)



29.5 cm


Ports & interfaces



Ethernet LAN (RJ-45) ports



2


Power



Power consumption (max)



19.98 Watt


Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



1.46 kg


Product Depth



22 cm


Product Height



4.7 cm


Product Width



22 cm


Protocols



Management protocols



SNMP v1/v2c/v3, Telnet, SSH


Security



MAC address filtering



Yes


Number of SSID supported



32


Security algorithms



AES, TKIP


Service Set Identifier (SSID) features



Multiple SSIDs


Technical details



Harmonized System (HS) code



85176990


Vendor information



Brand Name


D-Link


Warranty



5 Year(s)
