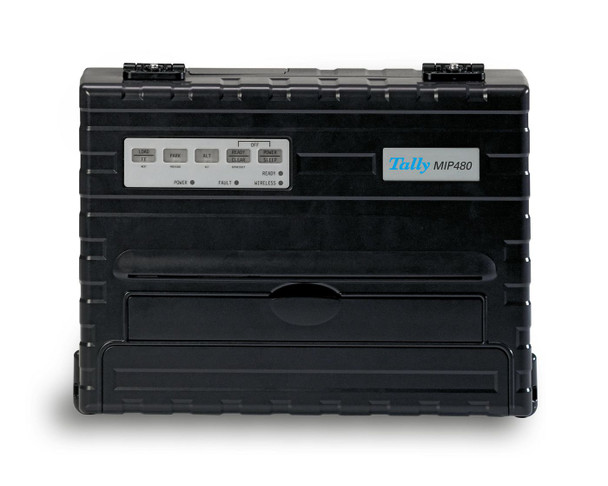

Dascom MIP48000-AA MIP 480 Mobiler Drucker MIP48000-AA

MIP480
High speed, easy to use mobile vehicle printer ideally suited to delivery notes and other mobile applications.
- Fastest impact mobile printer available today for truck use;
- Rugged construction;
- Simple to change ribbon;
- Vertical or horizontal orientation for low footprint;
- Comprehensive set of interfaces: Serial RS232, USB-2 and Bluetooth;
- Easy paper loading;
- Supports fanfold and multipart forms;
- 12-24 volts nominal for compatibility with a wide range of trucks.

The MIP480 is an impact printer, designed primarily for delivery note printing in commercial vans and trucks. Connection is via computerised Fleet Management systems or Truck/In-vehicle computing solutions. With nominal 12-24 volt power source, it is ideally suited for truck operation where it can be powered from the vehicle�s battery. It combines speed, operational flexibility and rugged reliability to offer an exceptional printer that is ideally suited for route delivery and other mobile applications.

A 100/240V power adapter is available for use in general power supply applications. With a 15,000 hour MTBF, 250 million character print head life and printer ribbons that can last up to six months in typical route delivery printing applications, the MIP480 vehicle printer is well suited for invoice printing in industries such as food and beverage, wholesale auto parts, emergency services, waste and hazardous materials. The MIP480 is an attractive printer for use in the warehouse and public safety sectors. The MIP480 can print up to 480 characters per second (400 cps at 10 characters per inch) and its 24-wire print head produces exceedingly clear text and graphic output on up to 4-part continuous and single sheet forms.

Endurance



Mean time between failures (MTBF)



15000 Hour


Print head



24-pin


Print head life



300 million characters


Ribbon life



4 million characters


Features



Buffer size



64 KB


Certification



CA, EN, GS Mark, CE EMC, E-Mark, EC, RoSH


Page description languages



Epson ESC/P2, IBM ProPrinter XL24E


Product colour



Black


Safety



UL 746C


Sound pressure level (printing)



57 dB


Operational conditions



Operating relative humidity (H-H)



30 - 80 %


Operating temperature (T-T)



-20 - 60 �C


Storage relative humidity (H-H)



10 - 90 %


Storage temperature (T-T)



-30 - 65 �C


Other features



Compatible operating systems



Android, iOS


Dimensions (WxDxH)



360 x 120 x 260 mm


Fonts included



Y


Line density



8 lpi


Power requirements



12 - 24VDC


Print technology



Dot matrix


Package dimensions



Gross Weight (Package, kg)



6.51 kg


Ports & interfaces



Standard interfaces



Bluetooth, RS-232C, USB 2.0


Power



AC input frequency



50/60 Hz


AC input voltage



100-240 V


Power consumption (economy mode)



2 Watt


Power consumption (standby)



7 Watt


Power consumption (typical)



150 Watt


Printing



Bitmap fonts



Courier, Draft, Gothic, OCR-A, OCR-B, Orator, Prestige, Roman, Sans Serif, Script


Built-in barcodes



CODABAR (NW-7), Code 128 (A/B/C), Code 39, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, UPC-A, UPC-E


Character density



10 cpi


Colour



No


Maximum number of copies



3 copies


Maximum print speed



600 cps


Maximum print speed (draft)



400 cps


Maximum print speed (LQ)



133 cps


Maximum resolution



180 x 360 DPI


Normal print speed



400 cps


Product dimensions



Net Weight (Product, kg)



6.5 kg


Product Depth



26.3 cm


Product Height



14 cm


Product Width



36.5 cm


System requirements



Server operating systems supported



Windows Server 2012, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2016, Windows Server 2016 x64, Windows Server 2019


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64


Technical details



Sustainability certificates



ENERGY STAR


Vendor information



Brand Name


Dascom


Warranty



1 Year(s)
