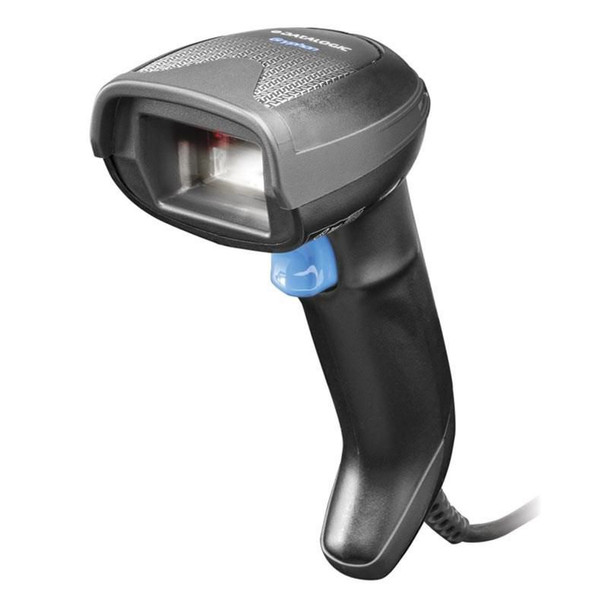

Datalogic GD4590-BK-B Gryphon I GD4590. 2D Mpixel GD4590-BK-B

The Gryphon� 4500 2D series represents the premium range of hand held scanners from Datalogic. The GD4500 scanner is the desk (corded) version for general purpose applications.

The Gryphon I GD4500 imager stands out with an elegant and trendy new design, unchallenged ergonomics and features the most advanced Megapixel sensor with warm-white-illumination 2D technology for outstanding performance.

The Gryphon GD4500 imager takes advantage of Datalogic�s Motionix� motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering both hand held and presentation reading options.

Datalogic�s reading technology with highly visible warm-white illumination is easier on the human eyes and reads colored labels much better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer�s center cross provides a locator for targeted scanning in a multiple bar code environment.

The GD4500 imager is also available in a Healthcare model with disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.

Design



Certification



IEC 60825 Class 2


International Protection (IP) code



IP52


Product colour



Black


Protection features



Shock resistant


RoHS compliance



Yes


Logistics data



Harmonized System (HS) code



84716070


Operational conditions



Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



0.55 kg


Performance



Built-in display



No


Certification



IEC 60825 Class 2


Image formats supported



BMP, JPEG


International Protection (IP) code



IP52


Product colour



Black


Protection features



Shock resistant


RoHS compliance



Yes


Ports & interfaces



Connectivity technology



Wired


Standard interfaces



RS-232, USB, Keyboard wedge


Power



Input voltage



4.5 - 14 V


Power consumption



300 mA


Power source type



DC


Product dimensions



Net Weight (Product, kg)



0.45000000000000007 kg


Product Depth



10.9 cm


Product Height



16.6 cm


Product Width



6.8 cm


Scanning



2D (matrix & stacked) barcodes supported



Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code


Light levels (direct sunlight)



0 - 100000 lx


Linear (1D) barcodes supported



Code 39, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, PDF417, Planet, POSTNET, U.P.C.


Motion tolerance (cm/s)



88.9


Optical sensor resolution (W x H)



1280 x 800 Pixels


Pitch reading angle



-65 - 65 �


Scanner type



1D/2D


Tilt reading angle



0 - 360 �


Type



Handheld bar code reader


Wavelength



650 nm


Yaw reading angle



-65 - 65 �


Technical details



Harmonized System (HS) code



84716070


Sustainability certificates



RoHS


Vendor information



Brand Name


Datalogic


Warranty



5 Year(s)
