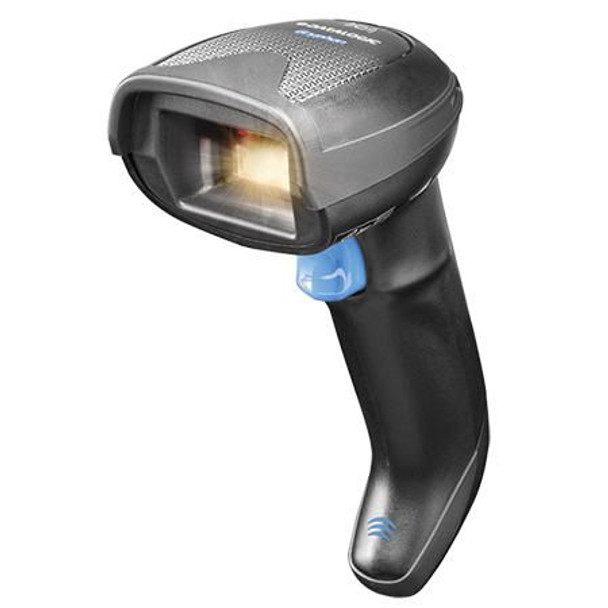

Datalogic GM4500-BK-910-WLC Gryphon GM4500. 2D MP imager GM4500-BK-910-WLC

The Gryphon 4500 series stands out with an elegant and trendy design, user friendly ergonomics and features the most advanced megapixel sensor with warm-white-illumination 2D technology for outstanding performance.

The Gryphon 4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes. High Density (HD) models are available for reading smaller, condensed codes as well as a dedicated version with red illumination optics to support Digital Watermarking.

Datalogic�s Motionix� motion-sensing technology enables the scanner to intuitively switch into �hand held� mode when the device is picked up. When placed back into the cradle, it seamlessly returns to �stand� mode. The adjustable position cradle provides the flexibility to use the scanner in presentation or stand mode while it is charging.

The wireless models feature Bluetooth wireless technology (GBT model) or narrow band radio communications with Datalogic�s STAR Cordless System (GM model).

One of the most important technical innovations that the Gryphon 4500 wireless readers achieve is the wireless charging system for the battery, which enhances the reliability of the entire solution, while lowering the total cost of ownership (no need for contact cleaning or maintenance procedures). The maximum reliability offered by the Gryphon wireless charging technology means 24/7 activities with no stops for maintenance or repair and top-level operating productivity and performance.

The Gryphon 4500 imagers are also available in Healthcare models featuring disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.

Design



International Protection (IP) code



IP52


Product colour



Black


RoHS compliance



Yes


Logistics data



Harmonized System (HS) code



84716070


Operational conditions



Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



0.5 kg


Performance



International Protection (IP) code



IP52


Product colour



Black


RoHS compliance



Yes


Ports & interfaces



Connectivity technology



Wireless


Operating frequency



910 MHz


Standard interfaces



RF Wireless


Wireless range



50 m


Power



Battery capacity



3250 mAh


Battery technology



Lithium-Ion (Li-Ion)


Battery voltage



12 V


Charging time



4 Hour


Input voltage



4.5 - 14 V


Number of reads per charge



80000


Power source type



Battery


Product dimensions



Net Weight (Product, kg)



0.4 kg


Product Depth



6.8 cm


Product Height



16.6 cm


Product Width



10.9 cm


Scanning



2D (matrix & stacked) barcodes supported



Aztec Code, Data Matrix, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, MaxiCode, Micro QR Code, MicroPDF417, QR Code


Light levels (direct sunlight)



0 - 100000 lx


Linear (1D) barcodes supported



Code 39, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, PDF417, U.P.C.


Optical sensor resolution (W x H)



1280 x 800 Pixels


Pitch reading angle



-65 - 65 �


Scanner type



2D


Sensor type



Laser


Tilt reading angle



0 - 360 �


Type



Handheld bar code reader


Wavelength



650 nm


Yaw reading angle



-65 - 65 �


Technical details



Harmonized System (HS) code



84716070


Sustainability certificates



RoHS


Vendor information



Brand Name


Datalogic


Warranty



3 Year(s)
