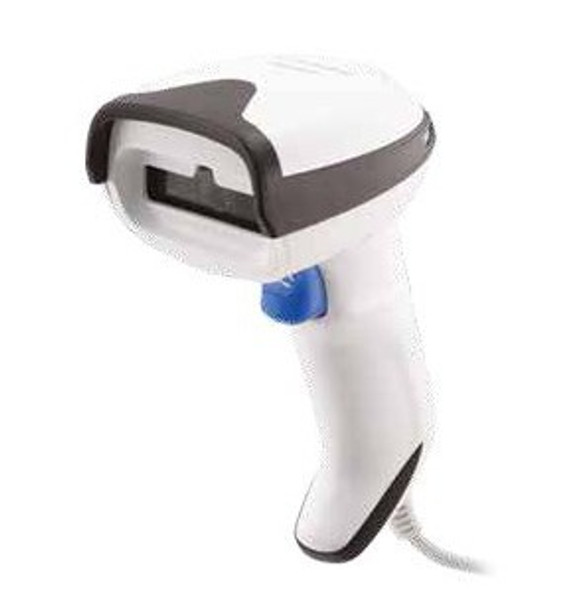

Datalogic Gryphon I GD4220 Handheld bar code reader 1D Linear White GD4220-WHK1

Datalogic Gryphon I GD4220 Handheld bar code reader 1D Linear White

Datalogic Gryphon I GD4220. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: Linear. Connectivity technology: Wired, Standard interfaces: USB. Product colour: White, International Protection (IP) code: IP52, Protection features: Electrostatic Discharge (ESD) protection. Power source type: DC, USB, Input voltage: 5 V. Weight: 163 g, Width: 166 mm, Depth: 68 mm

Scanning Type Characteristics of the device. Handheld bar code reader Scanner type Indicates the type of scanner this product is. 1D Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. Linear Linear (1D) barcodes supported The product can read linear (1D) barcordes. GS1 DataBar 2D (matrix & stacked) barcodes supported The product can read matrix (2D) barcordes. Not supported Read rate (max) 400 reads/s Tilt reading angle 0 - 45- Pitch reading angle 0 - 65- Yaw reading angle 0 - 65- Ports & interfaces Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. Wired Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. USB Performance International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". IP52 Protection features Physical effects from which the product is protected e.g. water resistant, crash proof. Electrostatic Discharge (ESD) protection LED indicators Ambient lighting
