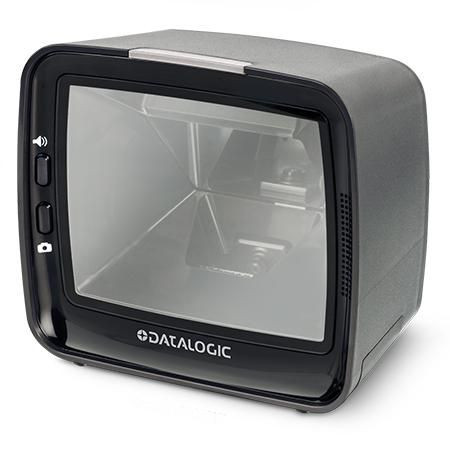

Datalogic M3450-010200-07104 Magellan 3450VSi. Kit. RS-232 M3450-010200-07104

Magellan 3450VSi

The Magellan 3450VSi scanner offers class leading performance on 1D and 2D codes, unmatched reliability and versatility, all in a compact size.

Features

- Class leading performance on 1D, 2D, and Digimarc Barcodes whether printed or displayed on smart phones maximizes productivity
- Object Sense illumination control automatically optimizes LED levels for improved user ergonomics and lower power consumption
- Multiple interfaces in each unit including RS-232, OEM USB, USB Keyboard and USB COM
- The FIRST single plane scanner available to support Digimarc Barcode digital watermarks which increase productivity by up to 30% while improving user ergonomics
- Flexible enterprise management with the on board Micro-SD card slot, Micro-B USB Service port or using popular remote management software applications
- Unmatched reliability for Retail with quality materials, excellent sealing, and an all Solid-State design

Overview

The Magellan 3450VSi scanner offers many of the features that have made the Magellan family of imaging scanners so successful, including seamless 1D and 2D decoding, solid state electronics, image capture, compact size and easy service access for software updates or configuration changes. It also benefits from the advances made in imaging, illumination, processors and software that Datalogic has brought to the multi-plane market with the Magellan 9800i and 9400i scanners. Improvements in both hardware and software enable a significant reduction in the brightness of the illumination while improving throughput, depth of field, and speed to read. The gentle, unobtrusive illumination reduces both direct and reflected illumination visible to users. This ensures a comfortable work environment and all day productivity. The Magellan 3450VSi scanner also has a larger, more intuitive scan zone, enabling more comfortable and efficient sweep scanning.

Design



International Protection (IP) code



IP52


Product colour



Black


RoHS compliance



Yes


Logistics data



Harmonized System (HS) code



84716070


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Performance



International Protection (IP) code



IP52


Product colour



Black


RoHS compliance



Yes


Ports & interfaces



Connectivity technology



Wired


Standard interfaces



RS-232


Power



Input frequency



50-60 Hz


Input voltage



100-240 V


Power consumption (standby)



2.6 Watt


Power consumption (typical)



3 Watt


Power source type



AC


Product dimensions



Net Weight (Product, kg)



1.2 kg


Product Depth



9.4 cm


Product Height



13.7 cm


Product Width



15.2 cm


Scanning



2D (matrix & stacked) barcodes supported



Aztec Code, Data Matrix, MaxiCode, QR Code


Light levels (direct sunlight)



0 - 86000 lx


Pitch reading angle



-65 - 65 �


Read rate (max)



39000000 reads/s


Scanner type



2D


Sensor type



LED


Tilt reading angle



0 - 360 �


Type



Fixed bar code reader


Yaw reading angle



-75 - 75 �


Technical details



Harmonized System (HS) code



84716070


Sustainability certificates



RoHS


Vendor information



Brand Name


Datalogic


Warranty



3 Year(s)
