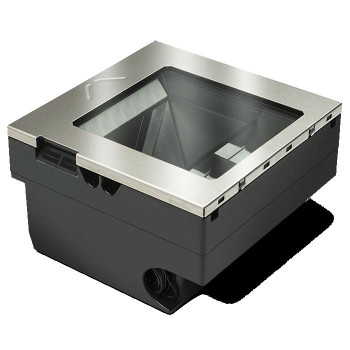

Datalogic M3550-010200 Magellan 3550HSi. Scanner. M3550-010200

Overview

The Magellan 3550HSi scanner offers many of the features that have made the Magellan family of imaging scanners so successful, including seamless 1D and 2D decoding, solid state electronics, image capture, compact size and easy service access for software updates or configuration changes. It also benefits from the advances made in imaging, illumination, processors and software that Datalogic has brought to the multi-plane market with the Magellan 9800i and 9400i scanners. Improvements in both hardware and software enable a significant reduction in the brightness of the illumination while improving throughput, depth of field, and speed to read. The gentle, unobtrusive illumination reduces both direct and reflected illumination visible to users. This ensures a comfortable work environment and all day productivity. The Magellan 3550HSi scanner also has a larger, more intuitive scan zone, enabling more comfortable and efficient sweep scanning.

Design



Certification



EN62471, IEC62471


International Protection (IP) code



IP52


LED indicators



Y, Yes


Product colour



Black, Silver


RoHS compliance



Yes


Logistics data



Harmonized System (HS) code



84716070


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



1 kg


Performance



Buzzer



Yes


Certification



EN62471, IEC62471


International Protection (IP) code



IP52


LED indicators



Y, Yes


Product colour



Black, Silver


RoHS compliance



Yes


Ports & interfaces



Connectivity technology



Wired


Power



Input frequency



50-60 Hz


Input voltage



100-240 V


Power consumption (typical)



4 Watt


Power source type



AC


Product dimensions



Net Weight (Product, kg)



0.9 kg


Product Depth



15.2 cm


Product Height



8.7 cm


Product Width



15.2 cm


Scanning



2D (matrix & stacked) barcodes supported



Aztec Code, Composite Codes, Data Matrix, GS1 DataBar Stacked Omnidirectional, MaxiCode, MicroPDF417, PDF417, QR Code


Light levels (direct sunlight)



0 - 86100 lx


Linear (1D) barcodes supported



GS1 DataBar Expanded


Scanner type



2D


Type



Fixed bar code reader


Working distance



10.2 cm


Technical details



Harmonized System (HS) code



84716070


Sustainability certificates



RoHS


Vendor information



Brand Name


Datalogic


Warranty



3 Year(s)
