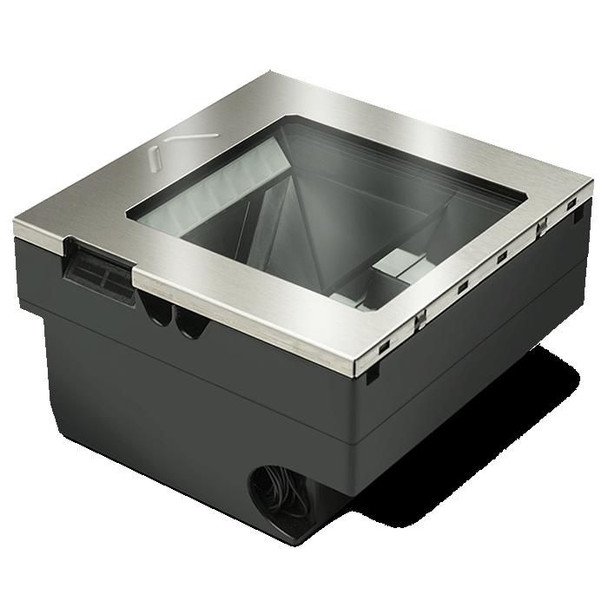

Datalogic M3553-010300 Magellan 3550HSi. Scanner. M3553-010300

The Magellan 3550HSi scanner offers many of the features that have made the Magellan family of imaging scanners so successful, including seamless 1D and 2D decoding, solid state electronics, image capture, compact size and easy service access for software updates or configuration changes. It also benefits from the advances made in imaging, illumination, processors and software that Datalogic has brought to the multi-plane market with the Magellan 9800i and 9400i scanners.
Improvements in both hardware and software enable a significant reduction in the brightness of the illumination while improving throughput, depth of field, and speed to read. The gentle, unobtrusive illumination reduces both direct and reflected illumination visible to users. This ensures a comfortable work environment and all day productivity. The Magellan 3550HSi scanner also has a larger, more intuitive scan zone, enabling more comfortable and efficient sweep scanning.

Logistics data



Harmonized System (HS) code



84716070


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



10 - 40 �C


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



1.31 kg


Performance



Ambient lighting



Yes


Built-in display



No


Compatible memory cards



MicroSD (TransFlash)


Image formats supported



BMP, JPEG


International Protection (IP) code



IP52


Print contrast



25 %


Product colour



Black, Stainless steel


Ports & interfaces



Connectivity technology



Wired


Standard interfaces



RS-232, USB


Power



AC adapter output voltage



100 - 240 V


Battery voltage



12 V


Input frequency



50/60 Hz


Input voltage



100 - 240 V


Power consumption (standby)



4 Watt


Power consumption (typical)



3 Watt


Power source type



AC, DC


Product dimensions



Net Weight (Product, kg)



1.21 kg


Product Depth



15.2 cm


Product Height



8.7 cm


Product Width



15.2 cm


Scanning



2D (matrix & stacked) barcodes supported



Aztec Code, Data Matrix, QR Code


Light levels (direct sunlight)



0 - 86100 lx


Linear (1D) barcodes supported



GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, PDF417


Optical sensor resolution (W x H)



1280 x 1024 Pixels


Pitch reading angle



-65 - 65 �


Read rate (max)



39000000 reads/s


Scanner type



2D


Sensor type



Laser


Tilt reading angle



0 - 360 �


Type



Built-in bar code reader


Working distance



10.2 cm


Yaw reading angle



-75 - 75 �


Technical details



Harmonized System (HS) code



84716070


Vendor information



Brand Name


Datalogic


Warranty



3 Year(s)
