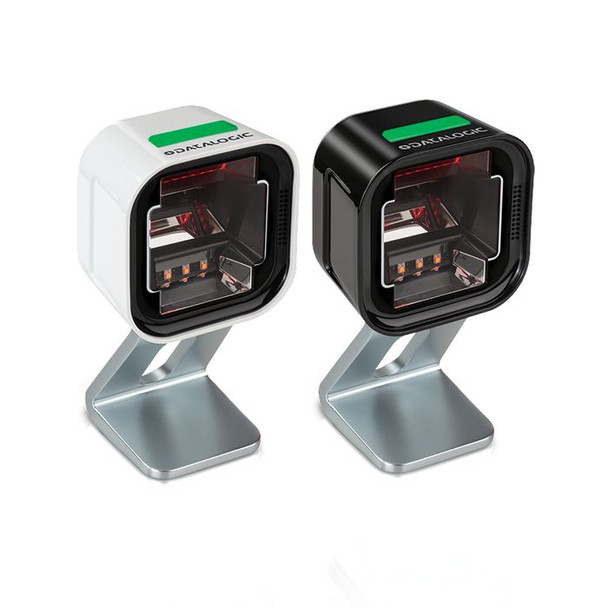

Datalogic MG1502-10220-1100 Magellan 1500i. White. 2D MG1502-10220-1100

Achieve more with the smallest presentation scanner
The Magellan 1500i presentation scanner from Datalogic is small in size but packed with performance. It is ideal for a range of applications including retail, point of sale, pharmacy, customer service, self-checkout, and kiosks. Built in a space-saving small physical footprint, the scanner still has a large reading area. Fast sweep scanning of your 1D, 2D and Digimarc barcodes is easy and intuitive, even from poorly printed labels or smartphone screens. The 1500i brings high-end performance to your operation and will adjust the illumination and depth of field to quickly optimize readability. Unlike other presentation scanners on the market, the 1500i performance is unaffected by the plexiglass barriers now required to ensure safety at checkout. This is a top performing scanner that will enable your operators to comfortably work throughout even the longest and toughest of shifts.

Work more ergonomically and simply
The Magellan 1500i is designed with ease of use in mind. The cable is efficiently routed away from the unit to ensure it never gets in your way. The clean lines and choice of colors in either black or white promote an uncluttered look to your workspace. The scanner operates in two modes: Stand Mode for when you require hands-free usage or Presentation Mode scanning for handheld use when an operator picks up the scanner. Stand mode enables high-speed sweep operation of up to 1.5 m/s; and handheld mode is automatically activated via the built-in accelerometer and provides targeted scanning with Datalogic�s Green Spot Technology with good-read feedback. Whichever way you choose to use it, you can count on easy scanning of your products and increased productivity.

Perform safely all day long
Datalogic has equipped the Magellan 1500i with adaptive illumination. This eliminates flicker and reduces brightness when not required, reducing any potential eye strain for your operators. The illumination will automatically adjust and optimize to the barcodes in the field of view. No need for any adjustment when seamlessly moving between printed and mobile barcode scanning. The 100% LED lighting is much safer and more reliable than laser-based scanning. The mixture of near-infrared and deep red lighting ensures both comfort and class-leading performance. The 1500i is the perfect partner when your operators need to work the longest of shifts with ease and comfort.

Combine looks and toughness in one
The Magellan 1500i is an elegant scanner with a small footprint of only 8 x 9 cm. However, the tough industrial design ensures its longevity in all of your operations. With a robust IP52 rated enclosure that supports multiple drops of up to 1.2 m on concrete, you can get many thousands of hours of performance when you need it. What�s more, the many mounting options, including a magnetic mount and wall mount make it easy to position or quickly switch between fixed or handheld scanning. Either way, performance will always be prioritized. Your ability to capture barcodes, including Digimarc, coupons, and images will not be compromised. The Magellan 1500i is the perfect addition to your scanning operation.

Logistics data



Harmonized System (HS) code



84716070


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



0.65 kg


Packaging data



Cables included



DC, RS-232


Performance



Ambient lighting



Yes


Buzzer



Yes


Certification



EN62471 , IEC62471


Image formats supported



BMP, JPEG


International Protection (IP) code



IP52


LED indicators



Y, Yes


Print contrast



25 %


Product colour



White


Protection features



Crash proof, Shock resistant


Ports & interfaces



Connectivity technology



Wired


Standard interfaces



RS-232


Power



Input voltage



5 V


Power consumption



500 mA


Power source type



DC, RS-232


Product dimensions



Net Weight (Product, kg)



0.55 kg


Product Height



9 cm


Product Width



8 cm


Scanning



2D (matrix & stacked) barcodes supported



Aztec Code, Data Matrix, MaxiCode, QR Code


Light levels (direct sunlight)



0 - 86.1 lx


Optical sensor resolution (W x H)



1280 x 800 Pixels


Pitch reading angle



-65 - 65 �


Scanner resolution



0.13 mm


Scanner type



2D


Sensor type



LED


Tilt reading angle



0 - 360 �


Type



Fixed bar code reader


Yaw reading angle



-75 - 75 �


Technical details



Harmonized System (HS) code



84716070


Sustainability certificates



RoHS


Warranty period



3 year(s)


Vendor information



Brand Name


Datalogic


Warranty



3 Year(s)
