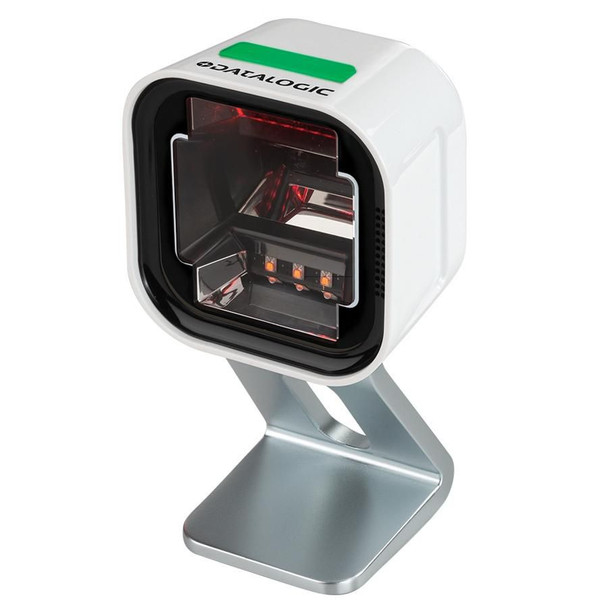

Datalogic MG1502-10320-0200 Magellan 1500i. White. DWM MG1502-10320-0200

Magellan 1500i
The Magellan 1500i is a high performance presentation scanner from Datalogic for a variety of applications including retail point of sale, pharmacy and customer service. The Magellan 1500i scanner provides outstanding performance on 1D and 2D bar codes from a variety of printed and mobile sources. The addition of Digimarc� Barcodes watermark decoding makes this a uniquely capable scanner in the presentation category.

Datalogic�s Magellan 1500i scanner is a high performance presentation scanner for a variety of applications including retail point of sale, pharmacy and customer service. The Magellan 1500i pairs imaging scanning expertise developed for our larger scanners with an innovative, compact design to create the most powerful presentation scanner on the market. The addition of Digimarc Barcode decoding makes the Magellan 1500i scanner uniquely capable of handling both current and future scanning needs.

The Magellan 1500i uses a high performance megapixel sensor and custom optics to create a large reading area capable of reading at distances up to 25 cm and with 1D sweep speeds up to 1.5 m/s. Powerful decoding algorithms provide unmatched performance on a variety of 1D and 2D labels, including hard-to-read, truncated and damaged codes. The large reading area and sweep performance of the Magellan 1500i scanner makes scanning easy and intuitive even for novice users.

The consistent, comfortable illumination enables seamless reading of 1D and 2D bar codes from printed or mobile sources while reducing reflection and eliminating flickering that can cause operator discomfort.

Datalogic�s Motionix� motion-sensing technology enables the scanner to intuitively switch into hand held mode when the device is picked up. This turns on an LED aimer, while �Green Spot� technology provides good-read confirmation directly on the code. When placed back on the counter, the scanner seamlessly returns to stand mode.

With its small footprint and attractive design, the Magellan 1500i scanner compliments any point of sale or service environment. Classic black and white enclosures pair with a variety of mounting options to make this a versatile, powerful product in an attractive, compact package.

Design



Certification



EN62471, IEC62471


Housing material



Plastic


International Protection (IP) code



IP52


Product colour



White


RoHS compliance



Yes


Logistics data



Harmonized System (HS) code



84716070


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



0.52 kg


Performance



Buzzer



Yes


Certification



EN62471, IEC62471


Housing material



Plastic


Image formats supported



BMP, JPEG


International Protection (IP) code



IP52


Product colour



White


RoHS compliance



Yes


Ports & interfaces



Connectivity technology



Wired


Standard interfaces



USB


USB version



2.0


Power



Input voltage



5 V


Power consumption



500 mA


Power source type



USB


Product dimensions



Net Weight (Product, kg)



0.42000000000000004 kg


Product Depth



7.5 cm


Product Height



15 cm


Product Width



6 cm


Scanning



Light levels (direct sunlight)



0 - 86.1 lx


Optical sensor resolution (W x H)



1280 x 800 Pixels


Pitch reading angle



-65 - 65 �


Sensor type



LED


Tilt reading angle



0 - 360 �


Type



Fixed bar code reader


Yaw reading angle



-75 - 75 �


Technical details



Harmonized System (HS) code



84716070


Sustainability certificates



RoHS


Vendor information



Brand Name


Datalogic


Warranty



3 Year(s)
