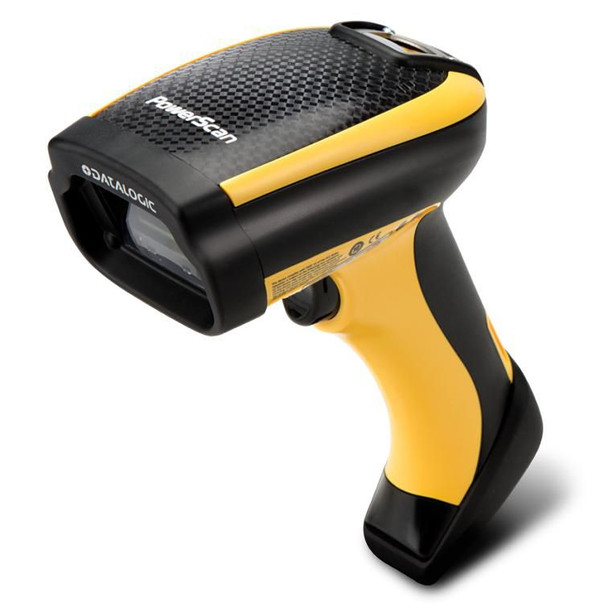

Datalogic PD9130 PowerScan PD9130 PD9130

PowerScan PD9130

Overview

The PowerScan PD9130 linear imager is a corded device offering state-of-the-art performance in an industrial product. This linear imager introduces Datalogic�s new and innovative scanning technology, implementing a green scanning line which has the same definition of a laser beam with all the benefits of a linear imager. The PD9130 imager features Datalogic�s exclusive 3 Green Lights (3GL) for superior good read feedback. The patented �Green Spot� technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle. The PD9130 imager�s mechanics have been developed and tested to withstand extreme environmental conditions, maintaining consistent reading performance without degrading performance or reliability. Its ergonomic enclosure is lightweight and well-balanced to ensure optimal operator comfort during scan-intensive operations. All models have multi-interface capabilities featuring the most popular interfaces; RS-232, Keyboard Wedge and USB.

Design



Certification



IEC 62471


International Protection (IP) code



IP65


Product colour



Black, Yellow


RoHS compliance



Yes


Logistics data



Harmonized System (HS) code



84716070


Operational conditions



Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



-20 - 50 �C


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



0.68 kg


Packaging data



Cables included



No


Performance



Certification



IEC 62471


International Protection (IP) code



IP65


Product colour



Black, Yellow


RoHS compliance



Yes


Ports & interfaces



Connectivity technology



Wired


Standard interfaces



RS-232, USB, Keyboard wedge


Power



Input voltage



30 V


Product dimensions



Net Weight (Product, kg)



0.48 kg


Product Depth



7.4 cm


Product Height



21.2 cm


Product Width



11 cm


Scanning



Linear (1D) barcodes supported



Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN 2, EAN 5, Plessey


Pitch reading angle



-75 - 75 �


Scanner type



1D


Sensor type



LED


Tilt reading angle



-45 - 45 �


Type



Handheld bar code reader


Working distance



610 cm


Yaw reading angle



-70 - 70 �


Technical details



Harmonized System (HS) code



84716070


Sustainability certificates



RoHS


Vendor information



Brand Name


Datalogic


Warranty



3 Year(s)
