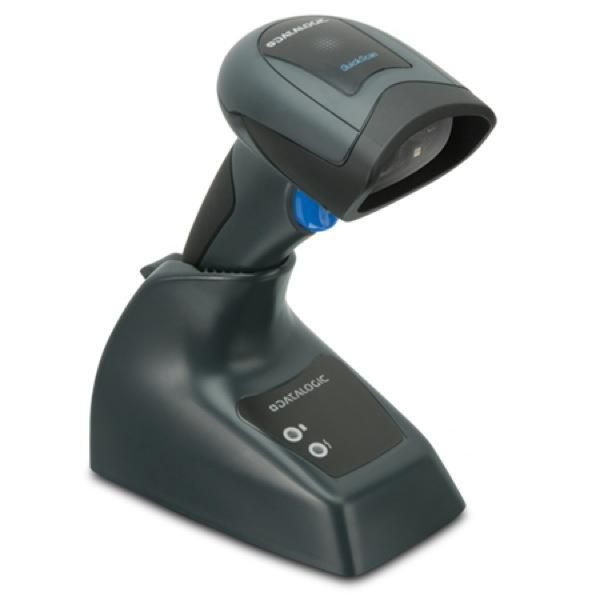

Datalogic QBT2131-BK-BTK2 QBT2131. Bluetooth Kit. RS-232 QBT2131-BK-BTK2

Long bar codes are commonly used in a variety of applications including, utilities bills, document processing and packaging. These long codes are a challenge for full area imagers to read due to their narrow field of view and shorter depth of field.
The QuickScan QBT2131 imager's extra-wide field of view and extra-long scan line makes reading long bar codes in closer distances much easier. The sharp and highly visible scan line makes the scanner more user-friendly to use, while the enhanced depth of field enables bar codes to be read at an intuitive distance. The stylish design is the signature of the QuickScan series, completing a consistent family appearance.
Featuring Bluetooth� Wireless Technology, the QuickScan QBT2131 imager can transmit data to the host through its base station as well as to any commercial or embedded Bluetooth compliant device.
The QBT2131 linear imager can also be connected to any tablet using either iOS or Android� operating systems via the Bluetooth HID profile.

Features
- Extra-wide scan angle and extra-long scan line
- Sharp and highly visible scan line
- Enhanced depth of field for general purpose scanning applications
- Bluetooth� Wireless Technology with up to 25.0 m / 82.0 ft range
- Compatible with Android and iOS devices through the Bluetooth HID profile
- Easy, tool-free, user-replaceable, long-lasting lithium-ion battery
- New battery package allows simultaneous change of charging contacts during battery replacement
- Alternative battery recharging through USB /microUSB cable
- Datalogic's patented 'Green Spot' technology for good-read feedback
- EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI

Design



International Protection (IP) code



IP42


Product colour



Black


Logistics data



Harmonized System (HS) code



84716070


Operational conditions



Operating relative humidity (H-H)



0 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



1.187 kg


Packaging data



Cables included



RS-232


Charging base



Yes


Performance



Buzzer



Yes


International Protection (IP) code



IP42


Product colour



Black


Ports & interfaces



Bluetooth version



3.0+HS


Connectivity technology



Wired & Wireless


Standard interfaces



Bluetooth, RS-232


Power



Battery capacity



1400 mAh


Battery technology



Lithium-Ion (Li-Ion)


Input voltage



4.75 - 14 V


Power source type



Battery


Product dimensions



Net Weight (Product, kg)



1.087 kg


Product Depth



4.1 cm


Product Height



16.3 cm


Product Width



9.1 cm


Scanning



2D (matrix & stacked) barcodes supported



Not supported


Pitch reading angle



-65 - 65 �


Read rate (max)



400 reads/s


Scanner type



1D


Tilt reading angle



-45 - 45 �


Type



Handheld bar code reader


Wavelength



650 nm


Yaw reading angle



-70 - 70 �


Technical details



Harmonized System (HS) code



84716070


Vendor information



Brand Name


Datalogic


Warranty



3 Year(s)


Weight & dimensions



Base weight



221 g
