Dataram DVM26U1T8/8G Dataram DVM26U1T8/8G memory DVM26U1T8/8G

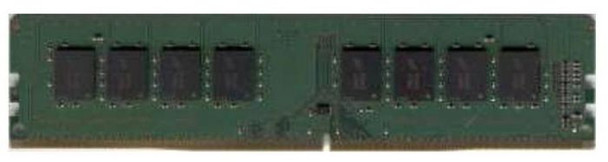

DVM26U1T8/8Gis anUnbuffered1Gx64memory module, which conforms to JEDEC's DDR4-2666, PC4-2666standard. The assembly is Single-Rank, comprised of eight1Gbx8 DDR4-2666SDRAMs.

One EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used.

Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.

A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Features



CAS latency



18


Component for



PC/Server


ECC



No


Internal memory



8 GB


Internal memory type



DDR4


JEDEC standard



Yes


Memory bandwidth (max)



19.2 GB/s


Memory clock speed



1333 MHz


Memory form factor



288-pin DIMM


Memory layout (modules x size)



1 x 8 GB


Memory voltage



1.2


Module configuration



1024M x 64


Programming power voltage (VPP)



2.5 V


Logistics data



Harmonized System (HS) code



84733020


Package dimensions



Gross Weight (Package, kg)



0.13 kg


Product dimensions



Net Weight (Product, kg)



0.1 kg


Product Height



3.13 cm


Product Width



13.33 cm


Sustainability



Sustainability certificates



RoHS


Vendor information



Brand Name


Dataram


Warranty



1 Year(s)
