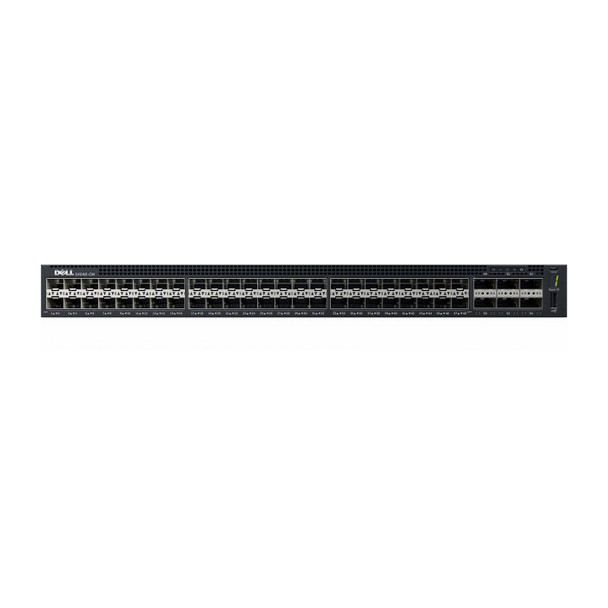

Dell 210-ADUZ-RFB Networking S4048-ON DNOS9 210-ADUZ-RFB

Flexible, powerful and optimized
Designed for flexibility and high performance for today's demanding modern workloads and applications.

Data transmission



Forwarding rate



1080 Mpps


Jumbo frames support



Yes


Latency (10 Gbps)



600 �s


MAC address table



160000 entries


Number of queues



8


Packet buffer memory



12 MB


Switching capacity



1440 Gbit/s


Design



Certification



ASNZS CISPR 22, ICES-003, EN 55022, VCCI V3, EN300 386 V1.4.1, EN 55024, EN 61000-3-2, EN 61000-3-3, EN61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, RoHS


Form factor



1U


LED indicators



Y, Yes


Product colour



Black


Rack mounting



Yes


Safety



UL/CSA 60950-L, EN 60950-1, IEC 60950-1, EN 60825-1, EN 60825-2, FDA 21 CFR 1040.10/1040.11


Stackable



Yes


Ventilation system



Back-to-front airflow


Management features



MIB support



Y


Quality of Service (QoS) support



Yes


Switch layer



L2/L3


Switch type



Managed


System event log



Yes


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



10G support



Yes


Flow control support



Yes


Full duplex



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Port mirroring



Yes


Routing entries



128000


Virtual LAN features



Tagged VLAN


VLAN support



Yes


Operational conditions



Heat dissipation



799.64 BTU/h


Operating relative humidity (H-H)



10 - 85 %


Operating temperature (T-T)



0 - 45 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



7 kg


Packaging data



Cables included



AC


Manual



Yes


Performance



Built-in processor



Yes


Internal memory



4000 MB


Noise level



59.6 dB


Physical stacking (units)



6


Ports & interfaces



Console port



RJ-45/Micro-USB


Power connector



AC-in jack


QSFP+ module slots quantity



6


SFP+ module slots quantity



48


USB 2.0 ports quantity



1


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Input current



2.3 A


Number of power supply units



1


Power consumption (max)



234.35 Watt


Power consumption (typical)



153 Watt


Power supply included



Yes


Redundant power supply (RPS) support



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



6.5 kg


Product Depth



43.5 cm


Product Height



4.35 cm


Product Width



43.4 cm


Protocols



GARP VLAN Registration Protocol (GVRP)



Yes


Management protocols



SMIv1, SMIv2, SNMPv1, SNMPv2, SNMPv3, IGMPv1, IGMPv2, IGMPv3, OSPF, OSPFv2, OSPFv3, RIPv1, RIPv2, RMON


Supported network protocols



IPv4, IPv6, LLDP, STP, PFC, ETS, MSTP, RSTP, UDP, TCP, Telnet, FTP, ICMP, ARP, DNS, NTPv3, CIDR, BOOTP, VRRP, MLD, MLDv2, TACACS, SSH, BGPv6, IS-IS, MD5, BGP-4, MSDP


Security



Access Control List (ACL) egress



1000


Access Control List (ACL) ingress



2500


Security algorithms



802.1x RADIUS, AES, EAP


Vendor information



Brand Name


Dell


Warranty



1 Year(s)
