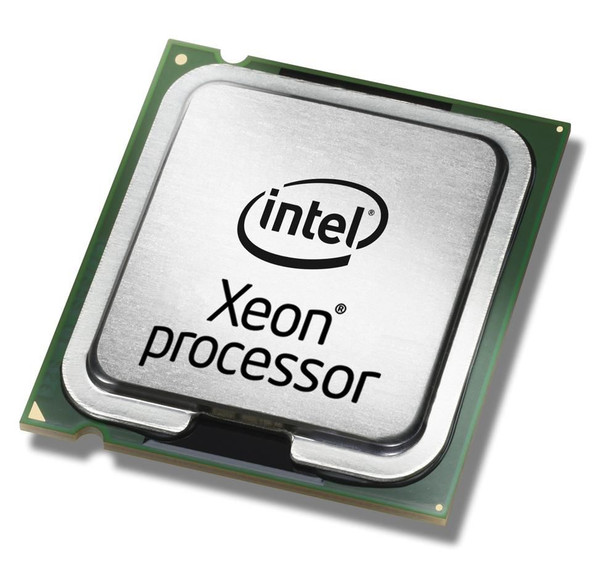

Dell 374-14552 Intel Xeon E5-2609 2.40GHz 374-14552

The Xeon� Processor from Intel is designed to deliver enhanced reliability and flexibility for server platforms. This processor offers excellent performance and headroom for peak Internet server loads, resulting in faster response times, support for more users and improved scalability. It has been tested and validated on Dell� systems to ensure it will work with your system. This processor is fully supported by Dell Technical Support when used with a Dell system.

Compatibility
- PowerEdge T620
- PowerVault DL2300.

Features



CPU configuration (max)



2


Embedded options available



No


Execute Disable Bit



Yes


Idle States



Yes


Market segment



Server


Maximum number of PCI Express lanes



40


PCI Express slots version



3.0


Scalability



2S


Supported instruction sets



AVX


Thermal Monitoring Technologies



Yes


Graphics



On-board graphics card



No


Memory



ECC



Yes


Maximum internal memory supported by processor



384 GB


Memory channels



Quad-channel


Memory clock speeds supported by processor



800, 1066


Memory types supported by processor



DDR3-SDRAM


Operational conditions



Tcase



70 �C


Other features



Intel� Virtualization Technology (Intel� VT)



VT-d, VT-x


Package dimensions



Gross Weight (Package, kg)



0.1 kg


Power



Thermal Design Power (TDP)



80 Watt


VID Voltage Range



0.60 - 1.35 V


Processor



Component for



Server/workstation


CPU multiplier (bus/core ratio)



24


Memory bandwidth supported by processor (max)



34.1 GB/s


Processor base frequency



2.4 GHz


Processor cache



10 MB


Processor cache type



L3


Processor cores



4


Processor family



Intel� Xeon� E5 Family


Processor frequency



2.4 GHz


Processor lithography



32 nm


Processor model



E5-2609


Processor operating modes



64-bit


Processor socket



LGA 2011 (Socket R)


Processor threads



4


Stepping



M1


System bus rate



6.4 GT/s


Thermal Design Power (TDP)



80 Watt


VID Voltage Range



0.60 - 1.35 V


Processor special features



Enhanced Intel SpeedStep Technology



Yes


Intel Demand Based Switching



Yes


Intel Fast Memory Access



No


Intel Trusted Execution Technology



Yes


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel� AES New Instructions (Intel� AES-NI)



Yes


Intel� Hyper Threading Technology (Intel� HT Technology)



No


Intel� Identity Protection Technology (Intel� IPT)



No


Intel� Smart Cache



Yes


Intel� Turbo Boost Technology



No


Intel� vPro� Platform Eligibility



Yes


Intel� vPro� Technology



Yes


Product dimensions



Net Weight (Product, kg)



0.09 kg


Vendor information



Brand Name


Dell


Warranty



6 Month(s)


Weight & dimensions



Processor package size



5.25 cm
