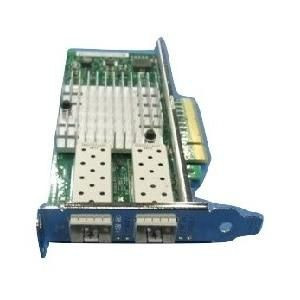

Dell 540-BBDW-RFB Intel X520 DP 10Gb DA/SFP+ 540-BBDW-RFB

The Intel X520 DP 10 Gb DA/SFP+ server adapter from Dell is a high performance adapter designed for the high-speed PCI Express bus architecture. It offers increased bandwidth, reliability and enhanced functionality. The dedicated input/output (I/O) bandwidth of PCIe ensures priority performance on the port - without bus sharing - for Gigabit Ethernet connectivity.

Design



Compatible products



Dell: PowerEdge R320, PowerEdge R420, PowerEdge R430, PowerEdge R520, PowerEdge R530, PowerEdge R630, PowerEdge R720, Poweredge R720xd, PowerEdge R730, PowerEdge R730XD, PowerEdge R820


Internal



Yes


PCI Card form factor



Full-height (low-profile)


Logistics data



Harmonized System (HS) code



85176990


Network



Data link protocols



10 GigE


Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000, 10000


Maximum data transfer rate



10000 Mbit/s


Other features



Harmonized System (HS) code



85176990


Package dimensions



Depth (package,cm)



16.7 cm


Gross Weight (Package, kg)



0.25 kg


Height (package,cm)



4.7 cm


Width (package,cm)



24.2 cm


Ports & interfaces



Connectivity technology



Wired


Host interface



PCI Express


Interface



Fiber


PCI Card form factor



Full-height (low-profile)


Product dimensions



Net Weight (Product, kg)



0.2 kg


Vendor information



Brand Name


Dell


Warranty



1 Year(s)
