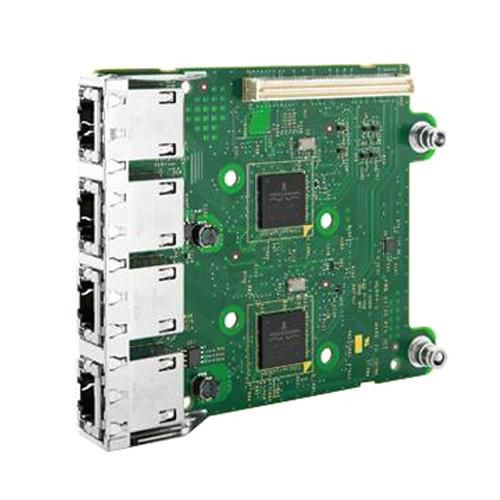

Dell 540-BBHG-RFB Broadcom 5720 QP 1Gb Network 540-BBHG-RFB

The BCM5720 is a fully integrated 10/100/1000BASE-T Gigabit Ethernet media access control and physical layer transceiver solution for high-performance network applications. The Quad-Port Gigabit Network Daughter Card features quad triple-speed IEEE 802.3-compliant Media Access Controllers (MACs) with quad 10/100/1000 Ethernet transceivers (PHYs), PCI Express bus interface, and on-chip memory buffer in a single device. It's based on dual BCM5720 Controllers each providing two ports.

This product is compatible with the following systems:- PowerEdge R620
- PowerEdge R630
- PowerEdge R720
- PowerEdge R720xd
- PowerEdge R730
- PowerEdge R730XD
- PowerEdge R820
- PowerEdge R920
- PowerVault DL4000
- PowerVault DR4100
- PowerVault DX6112 SN.

Design



Compatible products



DELL PowerEdge R620, R630, R720, R720xd, R730, R730XD, R820, R920, PowerVault DL4000, DR4100, DX6112 SN


Component for



Server


Internal



Yes


Product colour



Green


Recommended usage



Server


Logistics data



Harmonized System (HS) code



85176990


Network



Cabling technology



10/100/1000BaseT(X)


Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000


LAN controller



Broadcom BCM5720


Maximum data transfer rate



1000 Mbit/s


Networking standards



IEEE 802.3


Other features



Harmonized System (HS) code



85176990


Receive Side Scaling (RSS)



Yes


Package dimensions



Gross Weight (Package, kg)



0.3 kg


Packaging data



Quantity



1


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



4


Host interface



PCI Express


Interface



Ethernet


Product dimensions



Net Weight (Product, kg)



0.2 kg


System requirements



Linux operating systems supported



Yes


Windows operating systems supported



Y, Yes


Vendor information



Brand Name


Dell


Warranty



1 Year(s)
