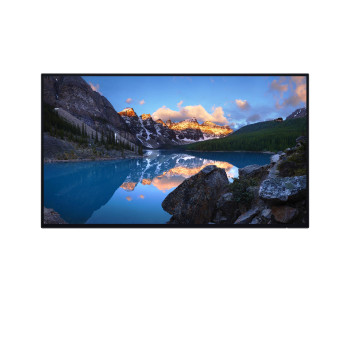

Dell DELL-U2424HE UltraSharp 24 USB-C Hub DELL-U2424HE

Experience improved visual comfort, peak productivity and extensive connectivity with this hub monitor certified by TÜV for 4-star eye comfort.

Design



Feet colour



Silver


Front bezel colour



Black


Heavy metals free



Hg (mercury)


Market positioning



Business


Product colour



Black, Silver


Display



Anti-glare screen



Yes


Backlight type



Edge LED


Colour gamut



85 %


Contrast ratio (typical)



1000:1


Display brightness (typical)



250 cd/m²


Display diagonal



23.8 "


Display diagonal (metric)



60.47 cm


Display number of colours



16.7 million colours


Display resolution



1920 x 1080 Pixels


Display technology



LCD


HD type



Full HD


High Dynamic Range (HDR) supported



No


Horizontal scan range



31 - 135 kHz


Maximum refresh rate



120 Hz


Native aspect ratio



16:9


Panel type



IPS


Pixel density



92.53 ppi


Pixel pitch



0.2745 x 0.2745 mm


Response time



8 Millisecond


Response time (fast)



5 Millisecond


RGB colour space



DCI-P3


Screen shape



Flat


sRGB coverage (typical)



100 %


Supported graphics resolutions



640 x 480 (VGA), 720 x 400, 720 x 480, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1600 x 900, 1920 x 1080 (HD 1080)


Supported video modes



480p, 576p, 720p, 1080i, 1080p


Surface hardness



3H


Touchscreen



No


Vertical scan range



48 - 120 Hz


Viewable size diagonal



60.47 cm


Viewable size, horizontal



52.704 cm


Viewable size, vertical



29.646 cm


Viewing angle, horizontal



178 °


Viewing angle, vertical



178 °


Ergonomics



Cable lock slot



Yes


Height adjustment



Yes


Height adjustment



15 cm


On Screen Display (OSD)



Yes


Panel mounting interface



100 x 100


Pivot



Yes


Pivot angle



-90 - 90 °


Swivel angle range



-45 - 45 °


Swivelling



Yes


Tilt adjustment



Yes


Tilt angle range



-5 - 21 °


VESA mounting



Yes


Multimedia



Built-in camera



No


Built-in speaker(s)



No


Network



Wi-Fi



No


Operational conditions



Non-operating altitude



5000 - 12192 m


Operating altitude



0 - 5000 m


Operating relative humidity (H-H)



10 - 80 %


Operating temperature (T-T)



0 - 40 °C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-20 - 60 °C


Other features



Ethernet LAN (RJ-45) ports



1


Package dimensions



Gross Weight (Package, kg)



4.4 kg


Packaging content



Cables included



AC, DisplayPort, USB Type-A to USB Type-C


DisplayPort cable length



1.8 m


Power adapter included



Yes


Quick start guide



Yes


Remote control included



No


Stand included



Yes


Stylus included



No


Performance



AMD FreeSync



No


Flicker-free technology



Yes


Low Blue Light technology



Yes


NVIDIA G-SYNC



No


Ports & interfaces



AC (power) in



Yes


Built-in USB hub



Yes


DisplayPort version



1.4


DisplayPorts quantity



2


HDCP



Yes


HDCP version



1.4


HDMI



Yes


HDMI ports quantity



1


HDMI version



1.4


Headphone out



Yes


Microphone in



No


Number of USB Type-C upstream ports quantity



2


PC Audio in



No


USB hub version



3.2 Gen 2 (3.1 Gen 2)


USB Power Delivery



Yes


USB Power Delivery up to



90 Watt


USB Type-A downstream ports quantity



4


USB Type-C DisplayPort Alternate Mode



Yes


USB Type-C downstream ports quantity



1


USB upstream port type



USB Type-C


Power



AC input frequency



50/60 Hz


AC input voltage



100 - 240 V


Energy consumption (SDR) per 1000 hours



15 kWh


Energy efficiency class (HDR)



Not available


Energy efficiency class (SDR)



D


Energy efficiency scale



A to G


Input current



2.2 A


Power consumption (max)



210 Watt


Power consumption (off)



0.3 Watt


Power consumption (standby)



0.5 Watt


Power consumption (typical)



14.5 Watt


Power supply type



Internal


Product dimensions



Net Weight (Product, kg)



4 kg


Sustainability



Doesn't contain



PVC/BFR


Sustainability certificates



ENERGY STAR, RoHS, TCO


Sustainability compliance



Yes


Vendor information



Brand Name


Dell


Warranty



1 Year(s)


Weight & dimensions



Bezel width (bottom)



8.95 mm


Bezel width (side)



5.8 mm


Bezel width (top)



5.8 mm


Depth (with stand)



18.175 cm


Depth (without stand)



4.91 cm


Height (with stand)



49.653 cm


Height (without stand)



31.121 cm


Weight (with stand)



5.55 kg


Weight (without stand)



3.98 kg


Width (with stand)



53.864 cm


Width (without stand)



53.864 cm
