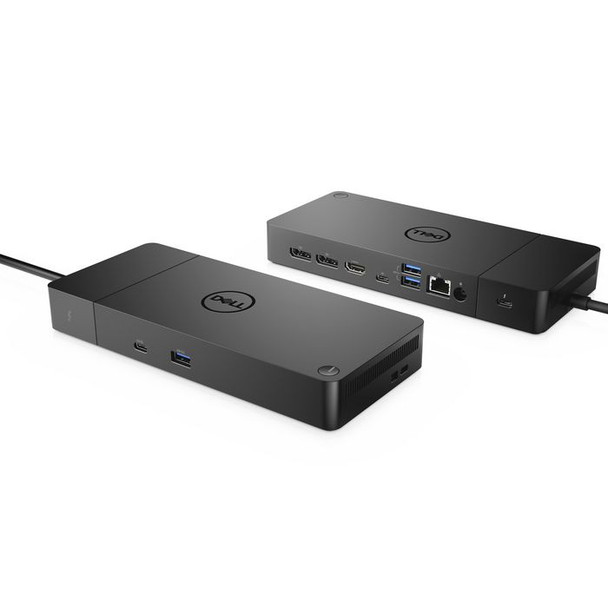

Dell DELL-WD19TBS180W DELL-WD19TBS180W DELL-WD19TBS180W

Boost your PC�s power with ExpressCharge Boost on the world�s most powerful and first modular Thunderbolt dock with a future-ready design. WD19TBS is a simplified version of WD19TB without 3.5mm ports.

Logistics data



Harmonized System (HS) code



84733020


Network



Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


Ethernet LAN data rates



1000


Operational conditions



Operating relative humidity (H-H)



10 - 80 %


Operating temperature (T-T)



0 - 35 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-20 - 60 �C


Package dimensions



Depth (package,cm)



31.5 cm


Gross Weight (Package, kg)



0.3 kg


Height (package,cm)



6.2 cm


Width (package,cm)



30 cm


Packaging data



Quantity per pack



1 pc(s)


Performance



Card reader integrated



No


LED indicators



Y, Yes


Maximum digital resolution



5120 x 2880 Pixels


On/off switch



Yes


Product colour



Black


VESA mounting



Yes


Ports & interfaces



Connectivity technology



Wired


DC-in jack



Yes


DisplayPort version



1.4


DisplayPorts quantity



2


HDMI ports quantity



1


HDMI version



2.0


Host interface



USB 3.2 Gen 2 (3.1 Gen 2) Type-C


Microphone in



No


PowerShare



Yes


Thunderbolt 3 ports quantity



1


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



3


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity



2


Power



AC input frequency



50 - 60 Hz


AC input voltage



120 - 230 V


Power cable length



0.8 m


Power source type



DC


Power supply



180 Watt


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



9 cm


Product Height



2.9 cm


Product Width



20.5 cm


Software



Linux operating systems supported



Y, Yes


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64


Vendor information



Brand Name


Dell


Warranty



1 Year(s)
